Instrument Cluster and Display

Instrument Cluster (Type B)

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



Close Caution
View Caution



When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note
View Note

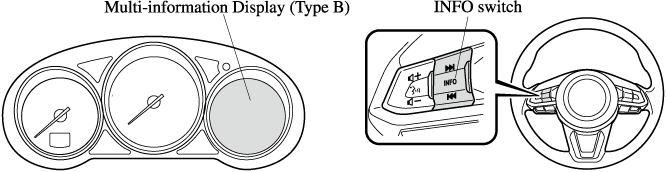

Multi-information Display (Type B)

The multi-information display indicates the following information.

  • Odometer

  • Trip meter

  • Engine coolant temperature gauge

  • Fuel gauge

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor (Except SKYACTIV-D 2.2)

  • Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display (SKYACTIV-D 2.2)

  • Blind Spot Monitoring (BSM) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Lane Departure Warning System (LDWS) Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Message Display

The screen content changes each time the INFO switch is pressed.

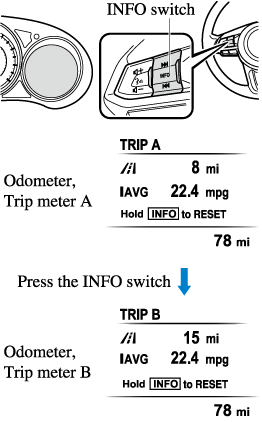

Odometer, Trip Meter and Trip Meter Selector

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.



Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.



When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.



  • Only the trip meters record tenths of kilometers (miles).

  • The trip record will be erased when:

    • The power supply is interrupted (blown fuse or the battery is disconnected).

    • The vehicle is driven over 9999.9 km (mile).

Close Note
View Note

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.





If the high engine coolant temperature warning light (red) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution
View Caution



  • (SKYACTIV-G 2.5T, SKYACTIV-D 2.2)

    If the engine coolant temperature is high or the engine is hot, the engine output may be limited.

  • The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.

    Refer to the Settings section in the Mazda Connect Owner's Manual.

Close Note
View Note
