Instrument Cluster and Display
Instrument Cluster and Display
Odometer, Trip Meter and Trip Meter Selector
The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.
Odometer
The odometer records the total distance the vehicle has been driven.

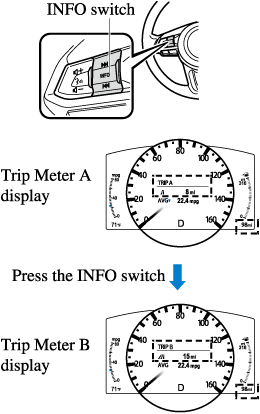

Trip meter
The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.
For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.
When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.
The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.
-
Only the trip meters record tenths of kilometers (miles).
-
The trip record will be erased when:
-
The power supply is interrupted (blown fuse or the battery is disconnected).
-
The vehicle is driven over 9999.9 km (mile).
-
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)
Displays the currently set system status.
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).
Message Display
A message such as the system operation status, a malfunction, or an abnormality is indicated.
Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message
Check the information regarding the warning/indicator light or indicated symbol.
Refer to If a Warning Indication/Warning Lights (Search).
Refer to If a Indication/Indicator Lights (Search).
Message only is indicated on display
Follow the instructions indicated on the display. For the display content, refer to the next page.
Refer to If a Message Indicated on Multi-information Display (Search).

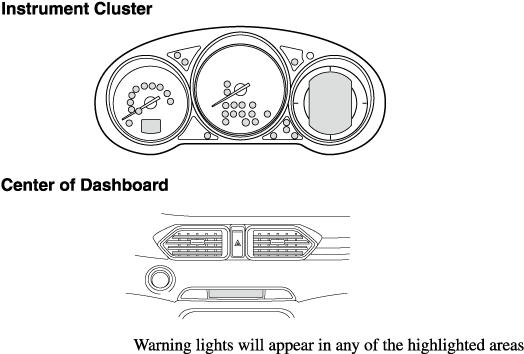

Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Warning |
Page |
|---|---|---|
 |
Brake System Warning Indication/Warning Light*1*2 |
(Search) |
 |
ABS Warning Light*1 |
Electronic Brake Force Distribution System Warning (Search) |
|
ABS warning (Search) |
||
 |
Charging System Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Warning Light*1 |
(Search) |
 |
High Engine Coolant Temperature Warning Indication |
(Search) |
 |
Power Steering Malfunction Indication |
(Search) |
 |
Master Warning Indication/Warning Light |
(Search) |
 |
Electric Parking Brake (EPB) Warning Indication/Warning Light*1 |
(Search) |
 |
Check Engine Light*1 |
(Search) |
 |
Selective Catalytic Reduction (SCR) system Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Automatic Transaxle Warning Indication |
(Search) |
 |
AWD Warning Indication (Some Models) |
(Search) |
 |
Air Bag/Front Seat Belt Pretensioner System Warning Light*1 |
(Search) |
 |
Tire Pressure Monitoring System Warning Light*1 |
Flashing (Search) |
|
Turns on (Search) |
||
 (Amber/White) |
KEY Warning Indication |
Amber (Search) |
|
White (Search) |
||
 (Amber) |
High Beam Control System (HBC) Warning Indication/Warning Light*1 |
(Search) |
 |
Blind Spot Monitoring (BSM) Warning Indication |
(Search) |
 (Amber) |
Driver Attention Alert (DAA) Warning Indication (Some Models) |
(Search) |
 (Amber) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models) |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication |
(Search) |
 |
LED Headlight Warning Light*1 |
(Search) |
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models) |
(Search) |
 |
Low Fuel Warning Indication/Warning Light |
(Search) |
 |
Check Fuel Cap Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Level Warning Light*1 |
(Search) |
 |
Seat Belt Warning Light (Front seat) |
(Search) |
 (Red) |
Seat Belt Warning Light (Rear seat) |
(Search) |
 |
Low Washer Fluid Level Warning Indication (Some Models) |
(Search) |
 |
Door-Ajar Warning Indication |
(Search) |
 |
Liftgate-Ajar Warning Indication |
(Search) |
 |
Door-Ajar Warning Light |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
-
The light turns on continuously when the parking brake is applied.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Indicator |
Page |
|---|---|---|
 (Green) |
Seat Belt Indicator Light (Rear seat) |
(Search) |
 |
Front Passenger Air Bag Deactivation Indicator Light*1 (Some Models) |
(Search) |
 |
Security Indicator Light*1 |
(Search) |
 |
Wrench Indication |
(Search) |
 |
Glow Indicator Light*1 (Some Models) |
(Search) |
 |
Diesel Particulate Filter Indication (Some Models) |
(Search) |
 |
Shift Position Indication |
(Search) |
 |
Lights-On Indication/Indicator Light |
(Search) |
 |
Headlight High-Beam Indicator Light |
Headlight High-Low Beam (Search) |
|
Flashing the Headlights (Search) |
||
 |
Turn Signal/Hazard Warning Indicator Lights |
Turn and Lane-Change Signals (Search) |
|
Hazard Warning Flasher (Search) |
||
 |
AUTOHOLD Active Indicator Light*1 |
(Search) |
|
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light |
(Search) | |
 |
TCS/DSC Indicator Light*1 |
Traction Control System (TCS) (Search) |
|
Dynamic Stability Control (DSC) (Search) |
||
|
Turns on (Search) |
||
 |
TCS OFF Indicator Light*1 (Some Models) |
(Search) |
 |
Off-Road Traction Assist Indicator Light*1 (Some Models) |
(Search) |
 |
Select Mode Indication |
(Search) |
 (Green) |
High Beam Control System (HBC) Indicator Light |
(Search) |
 |
Blind Spot Monitoring (BSM) OFF Indicator Light*1 |
Malfunction (Search) |
|
Except malfunction (Search) |
||
 (White) |
Driver Attention Alert (DAA) Indication (Some Models) |
(Search) |
 (White) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models) |
(Search) |
 (Green) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models) |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light*1 |
(Search) |
|
Smart City Brake Support (SCBS) Indication (Some Models) |
Advanced Smart City Brake Support (Advanced SCBS) (Search) |
|
Smart City Brake Support [Reverse] (SCBS R) (Search) |
||
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models) |
Advanced Smart City Brake Support (Advanced SCBS) (Search) |
|
Smart City Brake Support [Reverse] (SCBS R) (Search) |
||
|
Smart Brake Support (SBS) System (Search) |
||
 (White) |
Cruise Main Indication (Some Models) |
(Search) |
 (Green) |
Cruise Set Indication (Some Models) |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Instrument Cluster (Type B)
Multi-information Display (Type B)

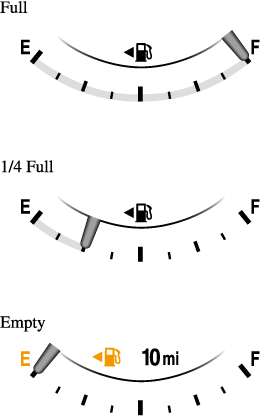

Fuel Gauge
The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.
If the fuel level is low, (
) and (
) turn an amber color. Refuel as soon as possible.
If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.
Refer to Taking Action (Search).
-
After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
-
The direction of the arrow (
) indicates that the fuel-filler lid is on the left side of the vehicle.
Distance-to-empty
This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.
The distance-to-empty will be calculated and displayed every second.
-
Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
-
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
-
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
-
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.
Current Fuel Economy
This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.
Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Indicator |
Page |
|---|---|---|
(Green) |
Seat Belt Indicator Light (Rear seat) |
(Search) |
|
Front Passenger Air Bag Deactivation Indicator Light*1 (Some Models) |
(Search) |
|
Security Indicator Light*1 |
(Search) |
|
Wrench Indication |
(Search) |
 (Blue) |
Low Engine Coolant Temperature Indicator Light |
(Search) |
|
Glow Indicator Light*1 (Some Models) |
(Search) |
|
Diesel Particulate Filter Indication (Some Models) |
(Search) |
 |
Shift Position Indication |
(Search) |
|
Lights-On Indication/Indicator Light |
(Search) |
 |
Headlight High-Beam Indicator Light |
Headlight High-Low Beam (Search) |
|
Flashing the Headlights (Search) |
||
|
Turn Signal/Hazard Warning Indicator Lights |
Turn and Lane-Change Signals (Search) |
|
Hazard Warning Flasher (Search) |
||
|
AUTOHOLD Active Indicator Light*1 |
(Search) |
|
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light (Some Models) |
(Search) | |
|
TCS/DSC Indicator Light*1 |
Traction Control System (TCS) (Search) |
|
Dynamic Stability Control (DSC) (Search) |
||
|
Turns on (Search) |
||
|
TCS OFF Indicator Light*1 (Some Models) |
(Search) |
|
Off-Road Traction Assist Indicator Light*1 (Some Models) |
(Search) |
|
Select Mode Indication |
(Search) |
(Green) |
High Beam Control System (HBC) Indicator Light |
(Search) |
|
Blind Spot Monitoring (BSM) OFF Indicator Light*1 |
Malfunction (Search) |
|
Except malfunction (Search) |
||
(White) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models) |
(Search) |
(Green) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models) |
(Search) |
|
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication (Some Models) |
(Search) |
|
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light*1 (Some Models) |
(Search) |
|
Smart City Brake Support (SCBS) Indication (Some Models) |
Advanced Smart City Brake Support (Advanced SCBS) (Search) |
|
Smart City Brake Support (SCBS) (Search) |
||
|
Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models) |
Advanced Smart City Brake Support (Advanced SCBS) (Search) |
|
Smart City Brake Support (SCBS) (Search) |
||
|
Smart Brake Support (SBS) System (Search) |
||
(White) |
Cruise Main Indication (Some Models) |
(Search) |
(Green) |
Cruise Set Indication (Some Models) |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Instrument Cluster (Type C)
Outside Temperature Display
When the ignition is switched ON, the outside temperature is displayed.
-
Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:
-
Significantly cold or hot temperatures.
-
Sudden changes in outside temperature.
-
The vehicle is parked.
-
The vehicle is driven at low speeds.
-
Changing the Temperature Unit of the Outside Temperature Display
The outside temperature unit can be switched between Celsius and Fahrenheit.
Settings can be changed by operating the center display screen.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Warning |
Page |
|---|---|---|
|
Brake System Warning Light*1*2 |
(Search) |
|
ABS Warning Light*1 |
Electronic Brake Force Distribution System Warning (Search) |
|
ABS warning (Search) |
||
|
Charging System Warning Light*1 |
(Search) |
|
Engine Oil Warning Light*1 |
(Search) |
|
Power Steering Malfunction Indicator Light*1 |
(Search) |
|
Master Warning Light*1 |
(Search) |
|
Electric Parking Brake (EPB) Warning Light*1 |
(Search) |
 (Red) |
Brake Pedal Operation Demand Warning Light*1 |
Flashing (Search) |
|
Buzzer & Flashing (Search) |
||
|
Check Engine Light*1 |
(Search) |
|
Automatic Transaxle Warning Light*1 |
(Search) |
|
AWD Warning Light (Some Models) |
(Search) |
|
Air Bag/Front Seat Belt Pretensioner System Warning Light*1 |
(Search) |
|
Tire Pressure Monitoring System Warning Light*1 |
Flashing (Search) |
|
Turns on (Search) |
||
 (Red) |
KEY Warning Light*1 |
Turns on (Search) |
|
Flashing (Search) |
||
|
LED Headlight Warning Light*1 |
(Search) |
(Amber) |
Smart City Brake Support (SCBS) Warning Light*1 (Some Models) |
(Search) |
 |
Low Fuel Warning Light |
(Search) |
|
Check Fuel Cap Warning Light*1 |
(Search) |
|
Engine Oil Level Warning Light*1 |
(Search) |
|
Seat Belt Warning Light (Front seat) |
(Search) |
(Red) |
Seat Belt Warning Light (Rear seat) |
(Search) |
|
Low Washer Fluid Level Warning Light (Some Models) |
(Search) |
|
Door-Ajar Warning Light |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
-
The light turns on continuously when the parking brake is applied.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Indicator |
Page |
|---|---|---|
(Green) |
Seat Belt Indicator Light (Rear seat) |
(Search) |
|
Front Passenger Air Bag Deactivation Indicator Light*1 (Some Models) |
(Search) |
 (Green) |
KEY Indicator Light |
(Search) |
|
Security Indicator Light*1 |
(Search) |
|
Wrench Indication/Indicator Light*1 |
(Search) |
|
Shift Position Indication |
(Search) |
|
Lights-On Indication/Indicator Light |
(Search) |
|
Headlight High-Beam Indicator Light |
Headlight High-Low Beam (Search) |
|
Flashing the Headlights (Search) |
||
|
Turn Signal/Hazard Warning Indicator Lights |
Turn and Lane-Change Signals (Search) |
|
Hazard Warning Flasher (Search) |
||
 (Green) |
Brake Pedal Operation demand Indicator Light |
(Search) |
|
AUTOHOLD Active Indicator Light*1 |
(Search) |
|
TCS/DSC Indicator Light*1 |
Traction Control System (TCS) (Search) |
|
Dynamic Stability Control (DSC) (Search) |
||
|
Turns on (Search) |
||
|
TCS OFF Indicator Light *1 (Some Models) |
(Search) |
|
Off-Road Traction Assist Indicator Light*1 (Some Models) |
(Search) |
|
Select Mode Indication (Some Models) |
(Search) |
|
Blind Spot Monitoring (BSM) OFF Indicator Light*1 (Some Models) |
Malfunction (Search) |
|
Except malfunction (Search) |
||
 (Red) |
Smart City Brake Support (SCBS) Indicator Light (Some Models) |
(Search) |
|
Smart City Brake Support (SCBS) OFF Indicator Light*1 (Some Models) |
(Search) |
(White) |
Cruise Main Indication |
(Search) |
(Green) |
Cruise Set Indication |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Wrench Indicator Light
When the ignition is switched ON, the wrench indicator light turns on and then turns off after a few seconds.
The wrench indicator light turns on under the following conditions:
-
When the preset maintenance period has arrived.
-
When it’s time to replace the engine oil.
Refer to the Information section in the Mazda Connect Owner's Manual.
-
The wrench indicator light turns on earlier than the preset period depending on vehicle usage conditions.
-
Whenever the engine oil is replaced, a reset of the vehicle engine control unit is necessary.
Refer to the Information section in the Mazda Connect Owner's Manual.

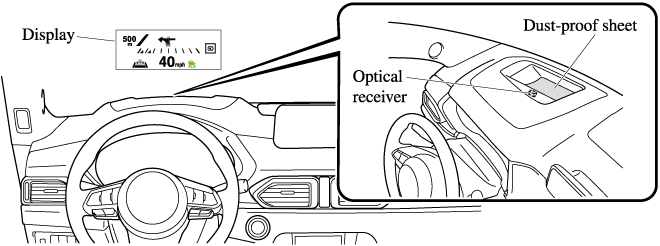

Active Driving Display (Some Models)
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.
-
Do not place beverages near the active driving display. If water or other liquids are splashed on the active driving display, it could cause damage.
-
Do not place objects above the active driving display or apply stickers to the dust-proof sheet/optical receiver as they will cause interference.
-
A sensor is integrated to control the display's luminosity. If the optical receiver is covered, the display's luminosity will lower making the display difficult to view.
-
Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
-
Wearing polarized sunglasses will reduce the visibility of the active driving display due to the characteristics of the display.
-
If the battery has been removed and re-installed or the battery voltage is low, the adjusted position may deviate.
-
The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.
-
If the audio system is removed, the active driving display cannot be operated.
The active driving display indicates the following information:
-
Blind Spot Monitoring (BSM) Operation Conditions and Warnings
Refer to Blind Spot Monitoring (BSM) (Search).
-
Traffic Sign Recognition System (TSR) traffic signs and Warnings
Refer to Traffic Sign Recognition System (TSR) (Search).
-
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Operation Conditions and Warnings
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).
-
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation Conditions and Warnings
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).
-
Advanced Smart City Brake Support (Advanced SCBS) Warnings
Refer to Advanced Smart City Brake Support (Advanced SCBS) (Search).
-
Smart City Brake Support (SCBS) Warnings
Refer to Smart City Brake Support (SCBS) (Search).
-
Smart Brake Support (SBS) Operation Conditions and Warnings
Refer to Smart Brake Support (SBS) (Search).
-
Cruise Control Operation Conditions
Refer to Cruise Control (Search).
-
Navigation Guidance (vehicles with navigation system)
-
Speed limit indicator (vehicles with navigation system)
-
Vehicle Speed
The active driving display settings can be changed or adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
-
The desired driving position (display position, brightness level, display information) can be called up after programming the position.
Refer to Driving Position Memory (Search).
