Instrument Cluster and Display
Dashboard Illumination
When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.
-
When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.
-
When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.
Refer to Headlights (Search).

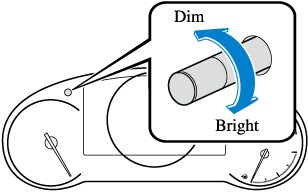

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.
-
The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.
-
The brightness increases by rotating the knob to the right.
Function for canceling illumination dimmer
The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.
-
When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.
-
When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.
Glow Indicator Light (SKYACTIV-D 2.2)
When the ignition is switched ON, the glow indicator light turns on. The glow indicator light turns off when preheating is finished.
The maintenance period for the glow plug or a problem in the system may be indicated under the following conditions. Have your vehicle inspected by an Authorized Mazda Dealer.
-
The glow indicator light does not turn on when the ignition is switched ON or it remains on.
-
The glow indicator light is flashing.
If the vehicle is left with the ignition switched ON without starting the engine and a long period of time has elapsed since preheating finished, the preheating may be performed again and the glow indicator light may turn on.
Instrument Cluster (Type B)
Speedometer
The speedometer indicates the speed of the vehicle.
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Multi-information Display (Type B)
The multi-information display indicates the following information.
-
Odometer
-
Trip meter
-
Engine coolant temperature gauge
-
Fuel gauge
-
Outside temperature
-
Distance-to-empty
-
Average fuel economy
-
Current fuel economy
-
Maintenance Monitor (Except SKYACTIV-D 2.2)
-
Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display (SKYACTIV-D 2.2)
-
Blind Spot Monitoring (BSM) Display
-
Distance Recognition Support System (DRSS) Display
-
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display
-
Lane Departure Warning System (LDWS) Display
-
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
-
Cruise Control Display
-
Compass Display
-
Message Display
The screen content changes each time the INFO switch is pressed.
Engine Coolant Temperature Gauge
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)
Displays the currently set system status.
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).
Low Engine Coolant Temperature Indicator Light (Blue)
The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Wrench Indicator Light
When the ignition is switched ON, the wrench indicator light turns on and then turns off after a few seconds.
The wrench indicator light turns on under the following conditions:
-
When the preset maintenance period has arrived.
-
When it’s time to replace the engine oil.
Refer to the Information section in the Mazda Connect Owner's Manual.
-
The wrench indicator light turns on earlier than the preset period depending on vehicle usage conditions.
-
Whenever the engine oil is replaced, a reset of the vehicle engine control unit is necessary.
Refer to the Information section in the Mazda Connect Owner's Manual.
