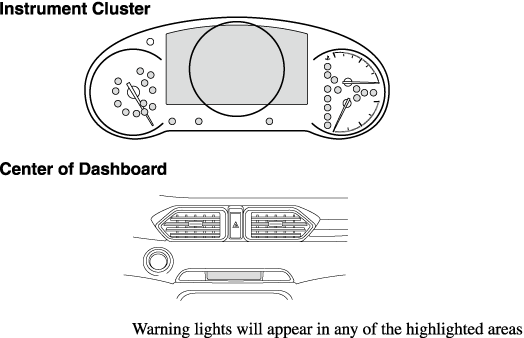

Instrument Cluster and Display

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.



---

• Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.

• The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.

• The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.

• If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note

View Note

The remaining amount of DEF and the remaining-distance-to-empty indications are displayed when the ignition is switched ON.

If the remaining amount of DEF is low or there is a problem with the Selective Catalytic Reduction (SCR) system and there is less maximum remaining driving distance, the remaining-distance-to-empty indication is continuously displayed.

If the remaining amount of DEF is low or there is a problem with the SCR system, the SCR warning light turns on/flashes and a warning message is displayed.

Refer to Selective Catalytic Reduction (SCR) System Indications (Search).

Displays the system status.

Refer to Blind Spot Monitoring (BSM) (Search).

Instrument Cluster varies depending on model and specifications.

The wrench indication is displayed under the following conditions.

• When the preset maintenance period has arrived.

  Refer to the Information section in the Mazda Connect Owner's Manual.

• When the engine oil replacement period has arrived.

• (SKYACTIV-D 2.2)

  • When the engine oil is deteriorated or exceeds the specified amount.

  • When fuel filter (sedimentor) draining is required. Consult an Authorized Mazda Dealer.



---

• The wrench indication may display earlier than the preset period depending on vehicle usage conditions.

• Whenever the engine oil is replaced, a reset of the vehicle engine control unit is necessary.

  Refer to the Information section in the Mazda Connect Owner's Manual.

Close Note

View Note

The speedometer indicates the speed of the vehicle.

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the fuel level is low, () and () turn an amber color. Refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Taking Action (Search).



---

• After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

• When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

• When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

  Refer to Headlights (Search).

Close Note

View Note

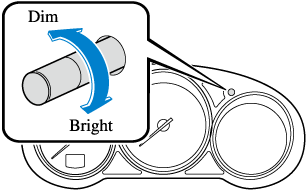

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

• The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

• The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



---

• The illumination dimmer can be canceled by pressing the dashboard illumination knob.

• When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

• When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note

View Note

The remaining amount of DEF and the remaining-distance-to-empty indications are displayed when the ignition is switched ON.

If the remaining amount of DEF is low or there is a problem with the Selective Catalytic Reduction (SCR) system and there is less maximum remaining driving distance, the remaining-distance-to-empty indication is continuously displayed.

If the remaining amount of DEF is low or there is a problem with the SCR system, the SCR warning light turns on/flashes and a warning message is displayed.

Refer to Selective Catalytic Reduction (SCR) System Indications (Search).

Displays the system status.

Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

Displays the distance between your vehicle and the vehicle ahead.

Refer to Distance Recognition Support System (DRSS) (Search).

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.
