Instrument Cluster

Instrument Cluster

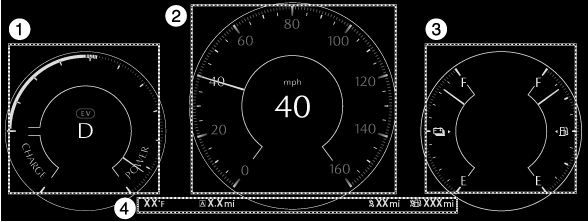

The screen display informs you of the vehicle information.

  1. Displays the power meter and the tachometer.

    The display differs depending on the drive mode.

  2. Displays the speedometer and vehicle information using messages.

    Changes depending on the drive mode and the system being used.

  3. Displays the high voltage battery power gauge and the fuel gauge.

    The display is changed using the INFO switch.

  4. Displays the ambient temperature/odometer/trip meter, maximum driving distance, and vehicle information using messages.

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Displays while driving in SPORT mode/OFF-ROAD mode/TOWING mode.

Refer to How to Use the Mazda intelligent Drive Select (Mi-Drive) (Search).




Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



  1. STRIPED ZONE

  2. RED ZONE




When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Odometer/Trip Meter

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance can be measured.

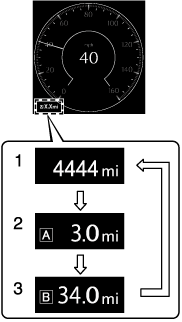

How to Use the Odometer/Trip Meter



The display changes each time the TRIP switch is pressed.

  1. Odometer display

  2. Trip meter A display

  3. Trip meter B display



When returning the trip meter to “0”, press the TRIP switch for 2 seconds or longer while the trip meter is displayed.




If the lead-acid battery is disconnected for vehicle maintenance or other reasons, the trip meter display returns to “0”.

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.






If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load.

Refer to Taking Action with Overheating (Search).

Dashboard Illumination

When the lights are turned on with the vehicle power switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.




When the vehicle power is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

Average Electrical Power Consumption Rate Display

The average energy efficiency is calculated every 30 seconds from the total traveled distance and the total electrical power consumption since the vehicle was purchased or the past data was reset, and the rate is displayed.



How to Use the Average Electrical Power Consumption Rate Display

To reset the displayed average electrical power consumption rate data, press the INFO switch for 2 seconds or longer.

After resetting the data, - - - kWh/100 km (- - - mile/kWh) is displayed before the average electrical power consumption rate is recalculated and displayed.

The average electrical power consumption rate is also reset at the same time as the average fuel economy.

How to Use the Average Fuel Economy Display

To reset the displayed average fuel economy data, press the INFO switch for 2 seconds or longer.

After resetting the data, - - - L/100 km (- - - mpg) is displayed until the average fuel economy is recalculated and displayed.

The average fuel economy is also reset at the same time as the average electrical power consumption rate.

Instantaneous Electrical Power Consumption Rate Display

The instantaneous energy efficiency while driving the vehicle is calculated from the electrical power consumption and displayed.






  • Displays the 0 position when the vehicle speed decreases to a constant speed or slower.

  • The arrow on the instantaneous electrical power consumption rate gauge indicates the average electrical power consumption rate.

Instantaneous Fuel Economy Display

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.






Displays the 0 position when the vehicle speed decreases to a constant speed or slower.

i-ACTIVSENSE Status Symbol (Warning/Risk Avoidance Support System)

Displays the on/off status of each i-ACTIVSENSE system.



Compass Display

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.



Message Display

Displays a message to notify the user of the system operation status and malfunctions or abnormalities.

Follow the instructions indicated on the display.

Refer to How to Use the Instrument Cluster (Search).
