Instrument Cluster and Display

Instrument Cluster

Instrument Cluster

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



  1. STRIPED ZONE*1

  2. RED ZONE*1

  1. The range varies depending on the type of gauge.

Close Caution
View Caution



When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note
View Note

Multi-information Display

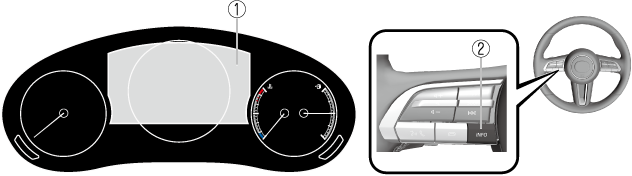

  1. Multi-information Display

  2. INFO switch



The multi-information display indicates the following information.

  • Speedometer

  • Odometer

  • Trip meter

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Deceleration Regeneration Charge Display (M Hybrid)

  • i-ACTIVSENSE Display

  • Compass Display

  • Door-Ajar/Trunk lid-Ajar/Liftgate-Ajar Warning Indication*1

  • Message Display

  1. Displayed when opening door/trunk lid/liftgate.

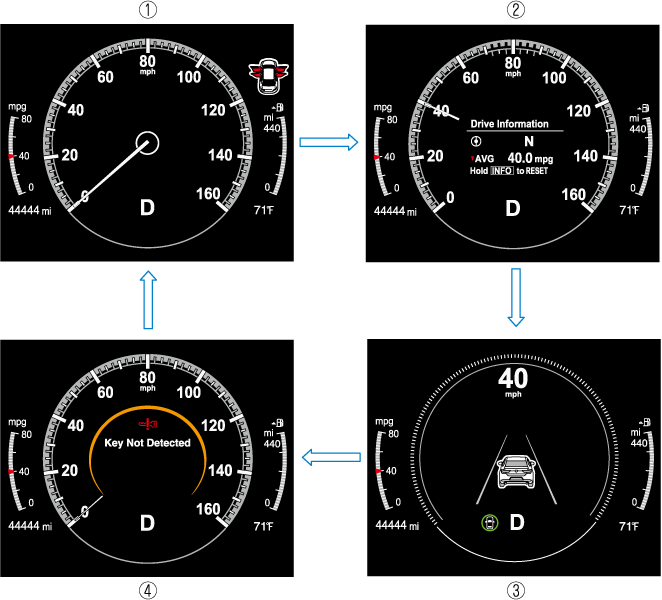

The screen content changes each time the INFO switch is pressed.

  1. Basic display

  2. Drive information display

  3. i-ACTIVSENSE display

  4. Message display*1

  1. Displayed only when a warning occurs.



The type of display for the fuel economy and the maximum driving distance can be changed.

Refer to the Settings section in the Mazda Connect Owner's Manual.

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.





When the engine coolant temperature gauge needle is in the red range, the engine coolant temperature is extremely high. Drive slowly to reduce engine load. If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Park the vehicle in a safe place immediately and take appropriate measures.

Refer to Overheating (Search).

Close Caution
View Caution



  • If the engine or engine coolant temperature is high or low, the engine output may be restricted to protect the engine.

Close Note
View Note

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.



  1. Full

  2. 1/4 Full

  3. Empty



If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Low Fuel Warning Indication/Warning Light (Search).



  • After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

  • The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note
View Note

Dashboard Illumination

(Without auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



  • (With auto-light control)

    When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

  • When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

    Refer to Headlights (Search).

Close Note
View Note

The brightness of the instrument panel and dashboard illuminations can be adjusted by pressing the dashboard illumination switch while the dashboard illumination is dimmed.

  • The brightness increases by pressing the + switch.

  • The brightness decreases by pressing the - switch. If you press the - switch while the instrument cluster is at maximum dimness, a sound is activated to notify you that the current dimmer setting is at maximum dimness.



  1. Bright

  2. Dim

Function for canceling illumination dimmer

The illumination dimmer can be canceled by pressing the + switch while the instrument cluster is at maximum dimness and while the ignition is switched ON. If you press the + switch again while the illumination dimmer is canceled, a sound is activated to notify you that it is canceled. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



  • When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

  • When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note
View Note

Outside Temperature Display

When the ignition is switched ON, the outside temperature is displayed.





  • Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

    • Significantly cold or hot temperatures.

    • Sudden changes in outside temperature.

    • The vehicle is parked.

    • The vehicle is driven at low speeds.

Close Note
View Note

Changing the Temperature Unit of the Outside Temperature Display

The outside temperature unit can be switched between Celsius and Fahrenheit.

Settings can be changed by operating the center display screen.

Refer to the Settings section in the Mazda Connect Owner's Manual.

Distance-to-empty

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.

When the remaining distance-to-empty is 50 km (30 miles) or farther, the remaining distance-to-empty indication decreases in 10 km (10 mile) increments, and when the remaining distance-to-empty is 50 km (30 miles) or shorter, it decreases in 1 km (1 mile) increments.





  • Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.

  • The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.

  • The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.

  • If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note
View Note

Compass Display

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.



Display

Direction

N

North

S

South

E

East

W

West

NE

Northeast

NW

Northwest

SE

Southeast

SW

Southwest

Wrench Indication/Indicator Light

The wrench indication/indicator light is displayed/turns on under the following conditions.

  • When the preset maintenance period has arrived.

    Refer to the Information section in the Mazda Connect Owner's Manual.



    • When the maintenance period arrives, have your vehicle inspected by an Authorized Mazda Dealer as soon as possible. If maintenance is neglected, a decrease in vehicle performance may occur which could cause damage. Have your vehicle inspected before the maintenance period arrives.

    • If the vehicle continues to be driven after the engine oil replacement period has passed, it could cause damage to the engine. Replace the engine oil before the maintenance period arrives.

    Close Caution
    View Caution



  • The wrench indication/indicator light may display/turn on earlier than the preset period depending on vehicle usage conditions.

  • Whenever the engine oil is replaced, a reset of the vehicle engine control unit is necessary.

    Refer to the Information section in the Mazda Connect Owner's Manual.

Close Note
View Note
Active Driving Display (Some Models)

Active Driving Display (Some Models)

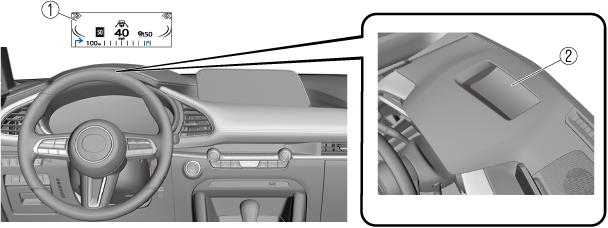

Active Driving Display

  1. Display

  2. Dust-proof sheet



Always adjust the display brightness and position with the vehicle stopped:

Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.

Close Warning
View Warning



  • Do not place beverages near the dust-proof sheet of the active driving display. If water or other liquids are splashed on the dust-proof sheet, it could cause damage.

  • Do not place objects or apply stickers above the active driving display or to the dust-proof sheet as they will cause interference.

Close Caution
View Caution



  • Wearing polarized sunglasses will reduce the visibility of the active driving display due to the characteristics of the display.

  • If the battery has been removed and re-installed or the battery voltage is low, the adjusted position may deviate.

  • The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.

  • If the audio system is removed, the active driving display cannot be operated.

Close Note
View Note

The active driving display indicates the following information:

  • Lane Departure Warning System (LDWS) Warnings (Some Models)

    Refer to Lane Departure Warning System (LDWS) (Search).

  • Blind Spot Monitoring (BSM) Operation Conditions and Warnings (Some Models)

    Refer to Blind Spot Monitoring (BSM) (Search).

  • Traffic Sign Recognition System (TSR) traffic signs and Warnings (Some Models)

    Refer to Traffic Sign Recognition System (TSR) (Search).

  • Front Cross Traffic Alert (FCTA) Operation Conditions and Warning (Some Models)

    Refer to Front Cross Traffic Alert (FCTA) (Search).

  • Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings (Some Models)

    Refer to Mazda Radar Cruise Control (MRCC) (Search).

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Operation Conditions and Warnings (Some Models)

    Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

  • Traffic Jam Assist (TJA) Operation Conditions and Warnings (Some Models)

    Refer to Traffic Jam Assist (TJA) (Search).

  • Lane-keep Assist System (LAS) Warnings (Some Models)

    Refer to Lane-keep Assist System (LAS) (Search).

  • Smart Brake Support (SBS) Operation Conditions and Warnings

    Refer to Smart Brake Support (SBS) (Search).

  • Cruise Control Operation Conditions

    Refer to Cruise Control (Search).

  • Navigation Guidance (vehicles with navigation system)

  • Intersection Name (vehicles with navigation system)

  • Street name (vehicles with navigation system)

  • Lane Guidance (vehicles with navigation system)

  • Speed limit indicator (vehicles with navigation system)

  • Vehicle Speed

The active driving display settings can be changed or adjusted.

Refer to the Settings section in the Mazda Connect Owner's Manual.



  • The desired driving position (display position, brightness level, display information) can be called up after programming the position.

    Refer to Driving Position Memory (Search).

  • The street name may not be displayed depending on the market and region.

Close Note
View Note
