Front Seats
Warnings and Cautions for Using the Front Seats
Never allow children to adjust a seat.
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked.
All of the seatbacks play an important role in your protection in a vehicle. Leaving the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After adjusting the seatback at any time, even when there are no other passengers, rock the seatback to make sure it is locked in place.
Do not modify or replace the front seats.
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts is dangerous. The front seats contain air bag components essential to the supplemental restraint system. Such modifications could damage the supplemental restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats.
Adjust a seat only when the vehicle is stopped.
If the seat is adjusted while the vehicle is being driven, the seating posture may become unstable and the seat could move unexpectedly resulting in injury.
Do not drive with damaged front seats.
Driving with damaged front seats, such as seat cushions torn or damaged down to the urethane, is dangerous. A collision, even one not strong enough to inflate the air bags, could damage the front seats which contain essential air bag components. If there was a subsequent collision, an air bag may not deploy which could lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags after a collision.
Do not drive with either front seats reclined.
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get the full protection from seat belts. During sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries. For maximum protection, sit well back and upright.
Do not place an object such as a cushion between the seatback and your back.
Putting an object such as a cushion between the seatback and your back is dangerous because you will be unable to maintain a safe driving posture and the seat belt cannot function at its full capacity in a collision, which could result in a serious accident, injury or death.
Do not place objects under the seat.
The object could get stuck and cause the seat to not be fixed securely, and result in an accident.
Do not stack cargo higher than the seatbacks.
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden braking or a collision, objects can fly around and become projectiles that may hit and injure passengers.
Make sure the adjustable components of a seat are locked in place.
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop or collision, the seat or seatback could move, causing injury. Make sure the adjustable components of the seat are locked in place by attempting to slide the seat forward and backward and rocking the seatback.
Make sure luggage and cargo is secured before driving.
Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.
Additionally, if the air bags deploy, the cargo may scatter which could result in serious injury or death.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving.
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or even a minor collision, a child not in a proper seat or child-restraint system and seat belt could be thrown forward, back or even out of the vehicle resulting in serious injuries or death. The child in the baggage area could be thrown into other occupants and cause serious injury.
-
When operating a seat, be careful not to put your hands or fingers near the moving parts of the seat or on the side trim to prevent injury.
-
When moving the seats, make sure there is no cargo in the surrounding area. If the cargo gets caught it could damage the cargo.
-
(Manual Seat)
When moving the seats forward and rearward or returning a rear-reclined seatback to its upright position, make sure you hold onto the seatback with your hand while operating. If the seatback is not held, the seat will move suddenly and could cause injury.
-
When inserting your hand under the seat to clean the cabin or pick up something you dropped under the seat, be careful not to hurt yourself. If you contact the moving parts and surrounding parts around the seat rail, seat frame, and the bottom of the seat, it could result in injury.
How to Use the Front Seats
Driver's Seat

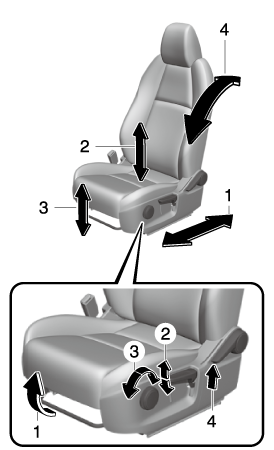

Manual seat
-
Seat Slide
-
Height Adjustment
-
Height Adjustment for Front Edge of Seat Bottom
-
Seat Recline

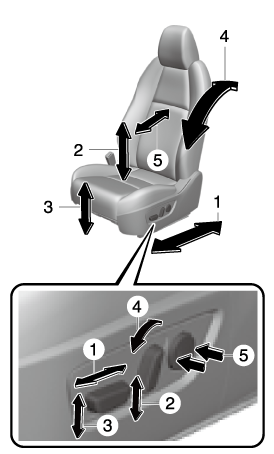

Power seat
-
Seat Slide
-
Height Adjustment
-
Height Adjustment for Front Edge of Seat Bottom
-
Seat Recline
-
Lumbar Support Adjustment

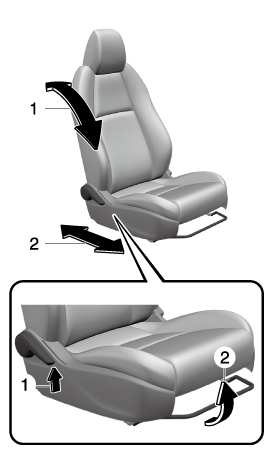

Passenger's seat
-
Seat Recline
-
Seat Slide
(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation because excessive use can damage the motors.
-
To prevent the battery from running down, avoid using the power adjustment when the engine is stopped. The adjuster uses a large amount of electrical power.
-
Do not use the switch to make more than one adjustment at a time.
Driving Position Memory (Some Models)
The desired driving position can be called up after programming the position.
-
Driver’s seat position (Seat slide, height adjustment, front edge of seat bottom, seat recline)
-
Active driving display (Display position, brightness level, display information)
-
Outside mirror angle
Warnings and Cautions for Using the Driving Position Memory
Do not place hand, fingers, or feet around the bottom of the seat while the seat memory function is operating. The seat moves automatically while the seat memory function is operating and hand, fingers, or feet could get pinched and injured.
How to Use the Driving Position Memory
A driving position can be programmed to the position memory switch and the key.
Programming
-
Switch the vehicle power ON.
-
Adjust the following driving positions to the desired positions.
-
Driver's seat
-
Active driving display
-
Outside mirrors
-
-
Continue pressing the SET switch until a sound is activated.
-
Do the following operation within 5 seconds after the sound is activated to program the driving position.
-
Programming to a position memory button
Press the button you want to program, either 1 or 2 button.
-
Programming to the transmitter
Press the unlock button on the transmitter.
A sound is activated when the operation is completed correctly.
-
Adjusting to the Programmed Driving Position
Operation Using the Position Memory Switch
Press either switch 1 or 2 that you programmed to activate the seat adjustment to your position.
A sound is activated when the adjustment to the programmed driving position is completed.
Operation Using the Key
-
Unlock the driver's door using one of the following methods.
-
Touch the sensing area of the door release touch sensor.
-
Press the key unlock button.
-
-
If the driver's door is opened within a certain period of time after unlocking, adjustment of the next driving position starts.
-
Driver's seat
-
Active driving display
-
Outside mirrors
A sound is activated when the adjustment to the programmed driving position is completed.
-
Deleting a Programmed Position
Erasing the Position Stored in the Position Memory Switch
Program a new driving position.
Deleting a Position Programmed to the Key
-
Switch the vehicle power OFF.
-
Continue pressing the SET switch until a sound is activated.
-
Press the key lock button within 5 seconds after the sound is activated.
-
If the angle of the outer mirror is adjusted close to the limits of its range of motion, the angle of the outer mirrors may not be programmed correctly.
-
When the adjustment to the programmed driving position has been completed, a sound is not activated.
-
Under the following conditions, the driving position adjustment is canceled.
-
The seat adjustment switch/SET switch/outer mirrors/active driving display for the driver's seat is operated to adjust the position.
-
The key lock button or unlock button is operated.
-
The vehicle moves.
-
The selector lever is shifted to a position other than P.
-
