Rear View Monitor

Rear View Monitor (Some Models)

Rear View Monitor (Some Models)

The rear view monitor is a system which assists the driver in checking safety by displaying the conditions behind the vehicle on the center display when the vehicle is driven in reverse.

How to Use the Rear View Monitor

How to Use the Rear View Monitor

Displaying the rear view monitor

Shift the selector lever to the R position.

Images are displayed on the center display.

Viewing the screen



  • The images displayed on the center display are reversed left and right.

  • Screen brightness and contrast can be adjusted.

    Refer to the Settings section in the Mazda Connect Owner's Manual.

Close Note
View Note

Type A

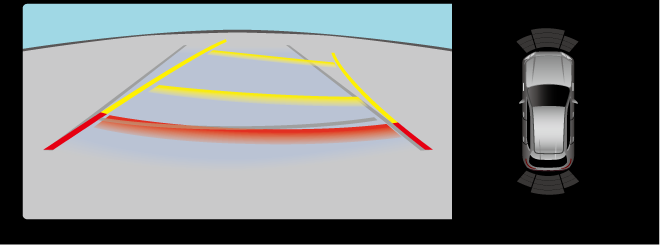

When the parking sensor is ON

When the parking sensor is OFF

Indication

Content

1

Projected vehicle path lines (yellow)

Indicates the approximate projected path of the vehicle.

The projected vehicle path lines move in conjunction with the steering wheel operation.

2

Vehicle width guide lines (blue)

Indicates the approximate width of the vehicle.

Does not display when the steering wheel is operated in a straight-ahead position.

3

Projected vehicle path distance guide lines (red/yellow)

These guide lines indicate the approximate distance to a point measured from the rear of the vehicle (from the end of the bumper).

  • The center point of the red line indicates the point about 50 cm (19 in) from the rear end of the rear bumper.

  • The center points of the yellow lines indicate the points about 1 m (39 in) and 2 m (78 in) from the rear end of the rear bumper.

4

Parking sensor status icon

Indicates that the parking sensor has a problem or it is switched off.

Type B

When the parking sensor is ON

When the parking sensor is OFF

Indication

Content

1

Vehicle width guide lines (yellow)

Indicates the approximate width of the vehicle.

2

Projected vehicle path distance guide lines (red/yellow)

These guide lines indicate the approximate distance to a point measured from the rear of the vehicle (from the end of the bumper).

  • The red line indicates the point about 50 cm (19 in) from the rear end of the rear bumper.

  • The yellow lines indicate the points about 1 m (39 in) and 2 m (78 in) from the rear end of the rear bumper.

3

Parking sensor status icon

Indicates that the parking sensor has a problem or it is switched off.

System problem indication

In the following cases, there might be a problem with the system. Have the vehicle inspected by an Authorized Mazda Dealer.

  • "No camera signal." is displayed on the center display.

  • The display on the center display does not switch to the camera image even if the selector lever is shifted to the R position.

  • A portion of the display on the center display is black.
