Active Driving Display
Active Driving Display (Some Models)
The active driving display indicates vehicle information and navigation information.
-

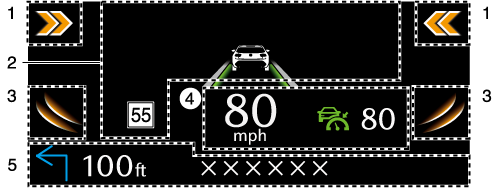

Front Cross Traffic Alert (FCTA) warning display area
-
i-ACTIVSENSE information display area and warning guidance display area
-
Blind Spot Monitoring (BSM) warning display area
-
Vehicle speed display area and setting speed display area
-
Navigation information display area
-
Wearing polarized sunglasses will reduce the visibility of the active driving display due to the characteristics of the display.
-
If the lead-acid battery has been removed and re-installed or the lead-acid battery voltage is low, the adjusted position may deviate.
-
The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.
Warnings and Cautions for Using the Active Driving Display
Always adjust the display brightness and position with the vehicle stopped.
Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.
-
Do not place beverages near the dust-proof sheet of the active driving display. If water or other liquids are splashed on the dust-proof sheet, it could cause damage.
-
Do not place objects or apply stickers to the dust-proof sheet as they will cause interference.
-
Dust-proof sheet
Convenient Ways to Use the Active Driving Display
The active driving display settings can be changed or adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
The desired driving position (display position, brightness level, display information) can be called up after programming the position.
Refer to How to Use the Driving Position Memory (Search).
