Windows
Power Windows
The power window has two functions.
Auto-opening/Closing Function
The windows can be fully opened and closed without having to continue operating the power window switch.
Jam-Safe Function
If a foreign object is detected between the window and the window frame while the window is closing, the window stops closing and opens slightly.
-
The power windows cannot be opened from the outside of the vehicle if the power window initialization has not been completed.
Refer to Initializing the Power Window (Search).
-
(A window cannot be closed)
If the jam-safe function has operated and the window cannot be closed, check around the window frame for a foreign object.
If there is no foreign object around the window frame, forcibly close a window using the following procedure.
-
After switching the vehicle power OFF, wait for 45 seconds or longer.
-
Switch the vehicle power ON.
-
Operate the switch in the direction to close the window until the jam-safe function operates and the window stops. Repeat this operation a total of 5 times.
-
Continue pulling up the switch to fully close the window.
-
Warnings and Cautions for Using the Power Windows
When closing the windows, be careful that a passenger’s hand or head does not get pinched.
Be especially careful with children. If a hand or head becomes pinched, it could cause serious injury.
Do not let a child operate the power window switches.
If a hand or head becomes pinched, it could cause serious injury.
Keep the power window lock switch in the lock position when carrying a child.
If the child operates the power window switch incorrectly and a hand or head becomes pinched, it could cause serious injury.
Make sure that there is nothing blocking the window just before it closes completely or while the power window switch is being pulled.
The jam-safe function may not be able to prevent the window from closing completely. If a finger gets pinched, it could cause serious injury.
Do not let a child put a hand or head out of the window.
Be careful not to let a child put a hand or head out of the window while driving the vehicle. If the child's hand or head hits something outside the vehicle or sudden braking is applied, it could result in serious injury or death.
How to Use the Power Windows
Opening/Closing the Windows
-
Switch the vehicle power ON.
-
Operate the power window switch.
To fully open the window automatically, press the power window switch all the way down and then release it.
To fully close the window automatically, pull the power window switch all the way up and then release it.
Driver's Seat
Front passenger/rear passenger seat
-
Close
-
Open
-
Front passenger's window
-
Right rear window
-
Left rear window
-
Driver's window
Locking the Front Passenger/Rear Seat Windows
Switch the power window lock switch on the driver's door to the lock position.
The driver’s switch can be operated, however, the front passenger/rear passenger switches are no longer operable.
The passenger windows may be opened or closed using the master control switches on the driver's door.
Press the power window lock switch again to the unlock position to cancel it.
-

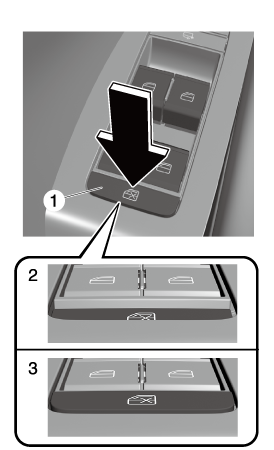

Power window lock switch
-
Lock position
-
Unlock position
Convenient Ways to Use the Power Windows
Operation Function After Vehicle power is Switched OFF
All the windows can be opened and closed for approximately 40 seconds after the vehicle power is switched to ACC or OFF with all doors closed. If any door is opened, the power window will stop operating.
Remote Power Window Operation
All power windows can be opened from outside the vehicle after the doors are closed.
The power windows can be operated remotely when the power window lock button on the driver's door is in the lock or unlocked position.
Remote power window operation is activated under the following conditions.
-
All the doors and liftgate are closed.
-
The vehicle power is switched OFF.
The power windows cannot be opened from the outside of the vehicle if the power window initialization has not been completed.
Opening
The windows can be opened for ventilating the cabin before getting in the vehicle.
Press the unlock button on the key quickly and briefly 3 times and then immediately afterwards, press and hold the unlock button to open the windows.
To stop the windows from opening, release the button. If the operation is performed from the beginning again, the windows open.
