Engine Compartment Inspection

The position and shape of each part may differ slightly depending on the specification.

SKYACTIV-G 2.0, SKYACTIV-G 2.5 and e-SKYACTIV G

1. Engine coolant reservoir

2. Engine oil dipstick

3. Brake/Clutch fluid reservoir

4. Lead-acid battery

5. Fuse block

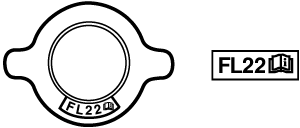

6. Cooling system cap

7. Engine oil-filler cap

8. Windshield washer fluid reservoir

SKYACTIV-G 2.5T

1. Engine coolant reservoir

2. Engine oil dipstick

3. Brake fluid reservoir

4. Lead-acid battery

5. Fuse block

6. Cooling system cap

7. Engine oil-filler cap

8. Windshield washer fluid reservoir



---

Use only windshield washer fluid or plain water in the reservoir.

Using radiator antifreeze as washer fluid is dangerous. If sprayed on the windshield, it will dirty the windshield, affect your visibility, and could result in an accident.

Using Washer Fluid Without Anti-freeze Protection in Cold Weather:

Operating your vehicle in temperatures below 4 ℃ (40 ℉) using washer fluid without anti-freeze protection is dangerous as it could cause impaired windshield vision and result in an accident. In cold weather, always use washer fluid with anti-freeze protection.

Close Warning

View Warning



---

Do not use soapy water or engine antifreeze in the reservoir as it could cause paint discoloration or pump damage.

Close Caution

View Caution



---

State or local regulations may restrict the use of volatile organic compounds (VOCs), which are commonly used as anti-freeze agents in washer fluid. A washer fluid with limited VOC content should be used only if it provides adequate freeze resistance for all regions and climates in which the vehicle will be operated.

Close Note

View Note

Add washer fluid under any of the following conditions.

• The top of the fluid level is low.

• The Low Washer Fluid Level Warning Indication/Warning Light (if equipped) turns on.

• The top of the fluid level is lower than E (if equipped).



Use plain water if washer fluid is unavailable.

But use only washer fluid in cold weather to prevent it from freezing.

Replacing the fuses on the vehicle's left side

If the electrical system does not work, first inspect the fuses on the vehicle's left side.

1. Make sure the vehicle power is switched off, and other switches are off.

2. Open the fuse panel cover.



3. Pull the fuse straight out with the fuse puller provided on the fuse block located in the engine compartment.



4. Inspect the fuse and replace it if it is blown.



   1. Normal

   2. Blown



5. Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. Consult an Authorized Mazda Dealer.

   If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the audio or accessory socket circuit.



   ---

   Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise, you may damage the electric system.

   Close Caution

   View Caution

6. Reinstall the cover and make sure that it is securely installed.

Replacing the fuses under the hood

If the headlights or other electrical components do not work and the fuses in the cabin are normal, inspect the fuse block under the hood.

If a fuse is blown, it must be replaced. Follow these steps:

1. Make sure the vehicle power is switched off, and other switches are off.

2. Remove the fuse block cover.



3. If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating.



   1. Normal

   2. Blown





   ---

   Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement.

   Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.

   Do not replace the main fuse and multiplex slow blow fuse by yourself. Have an Authorized Mazda Dealer perform the replacement.

   Replacing these fuses by yourself is dangerous because they are high current fuses. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.

   Close Warning

   View Warning

4. Reinstall the cover and make sure that it is securely installed.

Fuse block (Engine compartment)

Fuse block (Left side)

All moving points of the body, such as door and hood hinges and locks, should be lubricated each time the engine oil is changed. Use a non-freezing lubricant on locks during cold weather.

Make sure the hood's secondary latch keeps the hood from opening when the primary latch is released.
