How to Use the ISOFIX Lower Anchor (Mexico)

  1. Open the convertible top.

  2. Make sure the ignition is switched off.

  3. Slide the passenger seat as far back as possible.*1

    Refer to How to Use the Front Seats (Search).

    1. You may need to move the seat forward slightly and recline the back of the seat, in order to assist in the fitment of some child-restraint systems.

  4. Make sure the seatback is securely latched by pushing it back until it is fully locked.

  5. Expand the area between the seat bottom and the seatback slightly to verify the locations of the ISOFIX lower anchor.

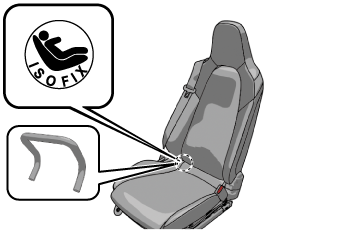

    The markings above the ISOFIX lower anchors indicate the locations of the ISOFIX lower anchors for the attachment of a child-restraint system.

    Close Note
    View Note

  6. Secure the child-restraint system using the ISOFIX lower anchor, following the child-restraint system manufacturer's instruction.

  7. Switch the ignition ON and make sure the passenger air bag deactivation OFF indicator light illuminates after installing a child-restraint system on the passenger seat.

    If the passenger air bag deactivation OFF indicator light does not illuminate, remove the child-restraint system, switch the ignition to OFF, and then re-install the child-restraint system (Search).



  8. If your child-restraint system came equipped with a tether, that probably means it is very important to properly secure the tether for child safety. Please carefully follow the child-restraint system manufacturer's instructions when installing tethers (Search).
