Hood
Warnings and Cautions for Using the Hood
Always check that the hood is closed and securely locked
A hood that is not closed and securely locked is dangerous as it could fly open while the vehicle is moving and block the driver's vision which could result in a serious accident.
-
When closing the hood, do not push it excessively such as by applying your weight. Otherwise, the hood could be deformed.
-
Be careful not to pinch your hand when closing the hood. It may result in an injury if your hand is caught.
-
When inspecting the engine compartment, do not misplace any tools or cloth. Misplacing any tools or cloth may result in engine damage, cause a fire, or cause an unexpected accident.
How to Use the Hood
Opening the Hood
-
With the vehicle parked, pull the release handle to unlock the hood.
-

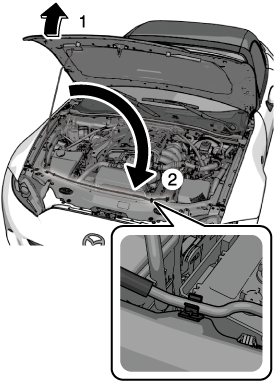

Insert your hand into the hood opening, slide the latch lever in the direction of the arrow as shown in the illustration, and lift up the hood.
-
Grasp the support rod in the padded area and secure it in the support rod hole indicated by the arrow to hold the hood open.
Closing the Hood
-
Check under the hood area to make certain all filler caps are in place and all loose items (e.g. tools, oil containers, etc.) have been removed.
-
Lift the hood, grasp the padded area on the support rod, and secure the support rod in the clip. Verify that the support rod is secured in the clip before closing the hood.
-
Lower the hood slowly to a height of about 20 cm (7.9 in) above its closed position and then let it drop.
