Rear View Monitor

The rear view monitor is a system which assists the driver in checking safety by displaying the conditions behind the vehicle on the center display when the vehicle is driven in reverse.

Warnings and Cautions for Using the Rear View Monitor

Always confirm the safety of the area around the vehicle visually when driving.

The rear view monitor is only designed to assist the driver while reversing. Images displayed on the display may differ from the actual conditions. Do not rely completely on the rear view monitor while reversing. Otherwise, the vehicle may contact an obstruction and cause an accident.

Close Warning

View Warning

Do not use the rear view monitor in the following locations/situations.
- There is a bump on a road.
- The vehicle is on a road incline.
- Icy or snow-covered slippery roads.
- Tire chains or a temporary spare tire is installed.
- The trunk lid is not fully closed.
When the center display is cold, images may leave trails or the display might be darker than usual, making it difficult to check the vehicle surroundings. Always confirm the safety around the vehicle visually when driving.

Close Caution

View Caution

How to Use the Rear View Monitor

Displaying the rear view monitor

Shift the shift lever/selector lever to the R position.

Images are displayed on the center display.

Viewing the screen

The images displayed on the center display are reversed left and right.
Screen brightness and contrast can be adjusted.

Set in the Mazda Connect “Settings” or consult an Authorized Mazda Dealer.

Close Note

View Note

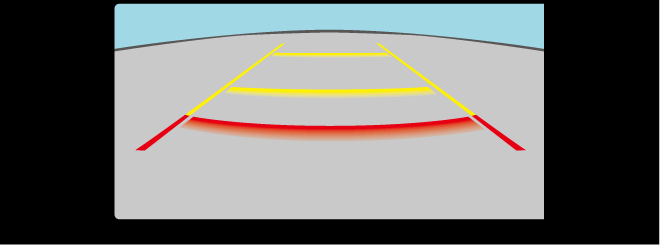

	Indication	Content
1	Vehicle width guide lines (yellow)	Indicates the approximate width of the vehicle.
2	Projected vehicle path distance guide lines (red/yellow)	These guide lines indicate the approximate distance to a point measured from the rear of the vehicle (from the end of the bumper). The red line indicates the point about 50 cm (19 in) from the rear end of the rear bumper. The yellow lines indicate the points about 1 m (39 in) and 2 m (78 in) from the rear end of the rear bumper.

Indication

Content

Vehicle width guide lines (yellow)

Indicates the approximate width of the vehicle.

Projected vehicle path distance guide lines (red/yellow)

These guide lines indicate the approximate distance to a point measured from the rear of the vehicle (from the end of the bumper).

The red line indicates the point about 50 cm (19 in) from the rear end of the rear bumper.
The yellow lines indicate the points about 1 m (39 in) and 2 m (78 in) from the rear end of the rear bumper.

System problem indication

In the following cases, there might be a problem with the system. Have the vehicle inspected by an Authorized Mazda Dealer.

"No camera signal." is displayed on the center display.
The display on the center display does not switch to the camera image even if the selector lever is shifted to the R position.
A portion of the display on the center display is black.
