Instrument Cluster

1. Multi-information Display

2. Dashboard Illumination Switch

3. Tachometer

4. Speedometer

The speedometer indicates the speed of the vehicle.

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



---

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



1. STRIPED ZONE

2. RED ZONE

Close Caution

View Caution



---

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

View Note

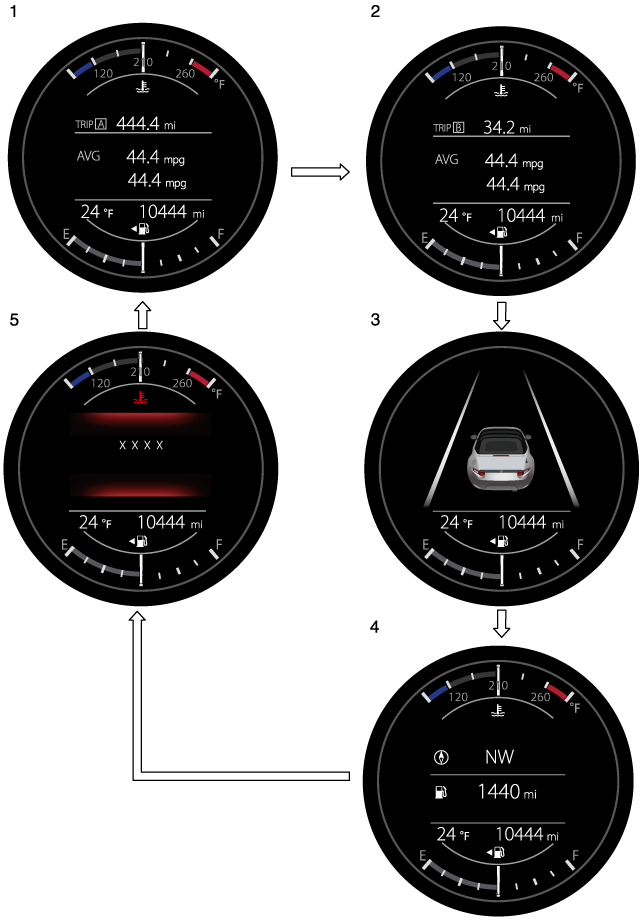

The screen display informs you of the vehicle information.

The multi-information display indicates the following information.

• Odometer

• Trip meter

• Engine coolant temperature gauge

• Fuel gauge

• Outside temperature

• Maximum driving distance

• Average fuel economy

• Current fuel economy

• i-ACTIVSENSE display

• Door-ajar/trunk lid-open warning indication^*1

• Compass Display

• Roof Operation Display (Hardtop)

• Message display

1. Displayed when opening door/trunk lid.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance can be measured.

The display changes each time the INFO switch is pressed.

1. Odometer display

2. Trip meter A display

3. Trip meter B display

When returning the trip meter to “0”, press the INFO switch for 2 seconds or longer while the trip meter is displayed.



---

If the lead-acid battery is disconnected for vehicle maintenance or other reasons, the trip meter display returns to “0”.

Close Note

View Note

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.

The engine coolant temperature gauge can be switched to indicate only the high engine coolant temperature range by pressing the dashboard illumination switch.



---

If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load.

Refer to Taking Action with Overheating (Search).

Close Caution

View Caution

The fuel gauge shows approximately how much fuel is remaining in the tank when the vehicle power is switched ON.

When the fuel tank is full, F (Full) is indicated, and as the level lowers the needle approaches E (Empty).



---

• After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The direction of the arrow indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

(Without auto-light control)

When the lights are turned on with the vehicle power switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control)

When the lights are turned on with the vehicle power switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

(With auto-light control)

When the vehicle power is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

Close Note

View Note

1. Dim

2. Bright

A beep sound will be heard when the knob has been rotated to the maximum dim position.

Function for canceling illumination dimmer

The illumination dimmer can be cancelled by rotating the instrument panel illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the vehicle power switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.

When the vehicle power is switched ON, the outside temperature is displayed.



---

The outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions.

Close Note

View Note

The maximum driving distance is calculated and displayed based on the current remaining fuel tank level and the fuel economy. When the maximum driving distance is 50 km (30 miles) or farther, the maximum driving distance indication decreases in 10 km (10 mile) increments, and when the maximum driving distance is shorter than 50 km (30 miles), it decreases in 1 km (1 mile) increments.



---

The maximum driving distance is just an approximate numerical value and differs from the actual driving distance. Drive the vehicle while checking the fuel gauge.

Close Note

View Note

To reset the displayed average fuel economy data, press the INFO switch for 2 seconds or longer.

After resetting the data, - - - L/100 km (- - - mpg) is displayed until the average fuel economy is recalculated and displayed.

Displays the system status.

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

Displays a message to notify the user of the system operation status and malfunctions or abnormalities.

Follow the instructions indicated on the display.

Refer to How to Use the Multi-information Display (Search).
