Instrument Cluster and Display
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Warning |
Page |
|---|---|---|
 |
Brake System Warning Indication/Warning Light*1*2 |
(Search) |
 |
ABS Warning Light*1 |
Electronic Brake Force Distribution System Warning (Search) |
|
ABS warning (Search) |
||
 |
Charging System Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Warning Light*1 |
(Search) |
 |
High Engine Coolant Temperature Warning Indication |
(Search) |
 |
Power Steering Malfunction Indication |
(Search) |
 |
Master Warning Indication/Warning Light |
(Search) |
 |
Electric Parking Brake (EPB) Warning Indication/Warning Light*1 |
(Search) |
 |
Check Engine Light*1 |
(Search) |
 |
Selective Catalytic Reduction (SCR) system Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Automatic Transaxle Warning Indication |
(Search) |
 |
AWD Warning Indication (Some Models) |
(Search) |
 |
Air Bag/Front Seat Belt Pretensioner System Warning Light*1 |
(Search) |
 |
Tire Pressure Monitoring System Warning Light*1 |
Flashing (Search) |
|
Turns on (Search) |
||
 (Amber/White) |
KEY Warning Indication |
Amber (Search) |
|
White (Search) |
||
 (Amber) |
High Beam Control System (HBC) Warning Indication/Warning Light*1 |
(Search) |
 |
Blind Spot Monitoring (BSM) Warning Indication |
(Search) |
 (Amber) |
Driver Attention Alert (DAA) Warning Indication (Some Models) |
(Search) |
 (Amber) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models) |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication |
(Search) |
 |
LED Headlight Warning Light*1 |
(Search) |
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models) |
(Search) |
 |
Low Fuel Warning Indication/Warning Light |
(Search) |
 |
Check Fuel Cap Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Level Warning Light*1 |
(Search) |
 |
Seat Belt Warning Light (Front seat) |
(Search) |
 (Red) |
Seat Belt Warning Light (Rear seat) |
(Search) |
 |
Low Washer Fluid Level Warning Indication (Some Models) |
(Search) |
 |
Door-Ajar Warning Indication |
(Search) |
 |
Liftgate-Ajar Warning Indication |
(Search) |
 |
Door-Ajar Warning Light |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
-
The light turns on continuously when the parking brake is applied.
Instrument Cluster (Type B)

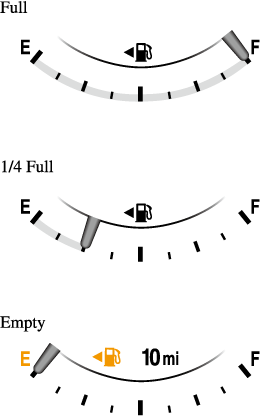

Fuel Gauge
) and (
) turn an amber color. Refuel as soon as possible.
) indicates that the fuel-filler lid is on the left side of the vehicle.
Maintenance Monitor (Except SKYACTIV-D 2.2)
The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.
-
Scheduled Maintenance
-
Tire Rotation
-
Oil Change
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.
Refer to the Information section in the Mazda Connect Owner's Manual.
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display (Some Models)
Displays the system status.
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).
