Adaptive Front Lighting System (AFS) (Some Models)

Adaptive Front Lighting System (AFS) (Some Models)

The adaptive front lighting system (AFS) automatically adjusts the headlight beams to the left or right in conjunction with the operation of the steering wheel after the headlights have been turned on.

A system malfunction or operation conditions are indicated by a warning.

Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected (Search).



The Adaptive Front Lighting System (AFS) function can be switched to operable/inoperable using the personalization function.

Refer to Personalization Features (Search).

Close Note
View Note
360° View Monitor (Some Models)

Types of Images Displayed on the Screen

Top view/Front view

Displays the image of the area around the vehicle and the vehicle front.



Front wide view

Displays the image of the front of the vehicle (wide-area).



Side view

Displays the image of the left and right sides of the vehicle.



Top view/Rear view

Displays the image of the area around the vehicle and the rear of the vehicle.



Rear wide view

Displays the image of the rear of the vehicle (wide-area).

Top View/Front View

Use the top view/front view to assist in checking the safety of the surrounding area when accelerating from a stop, parking, or stopping the vehicle.

Display range



  • In the top view screen, the areas in black at the front and rear of the vehicle image and the seams where each of the camera images merge are blind spots.

  • Because images displayed in the top view screen are processed from each camera, the top view screen may display in the following ways.

    • If an image containing an object with a conspicuous color is picked up by any of the cameras, the whole screen may be affected and it may display in that color.

    • Obstructions displayed in the front view may not display on the top view screen.

    • If the position or angle of each camera changes due to tilting of the vehicle, the image may appear distorted.

    • Lines on the road may appear distorted at the seams where each of the camera images merge.

    • The entire screen may appear bright/dark depending on the illumination level around any of the cameras.

Close Note
View Note

Viewing the screen

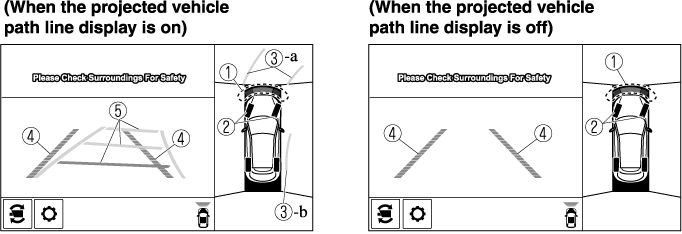

Display/Icon

Content

Parking sensor view

Displays the parking sensor detection condition when the parking sensor is activated.

For details, refer to the parking sensor obstruction detection indication and warning sound.

Refer to Parking Sensor System (Search).

Tire icon

Indicates the tire direction. Moves in conjunction with the steering wheel operation.

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle. Moves in conjunction with the steering wheel operation.

a) Indicates the path where the edge of the front bumper is expected to travel.

b) Indicates the path where the inner side of the vehicle is expected to travel.

Extended vehicle width lines and distance guide lines (red/blue)

Indicates the approximate width of the vehicle and the distance (from front end of bumper) in front of the vehicle.

  • The red lines indicate the points up to about 0.5 m (20 in) from the front end of the bumper.

  • The blue lines indicate the points from about 0.5 m (20 in) and up to 2 m (79 in) from the front end of the bumper.

Projected vehicle path distance guide lines (red/amber)

Indicates the distance (from front end of bumper) in front of the vehicle.

  • The red line indicates the point about 0.5 m (20 in) from the front end of the bumper.

  • The orange lines indicate the points about 1 m (39 in) and 2 m (79 in) from the front end of the bumper.

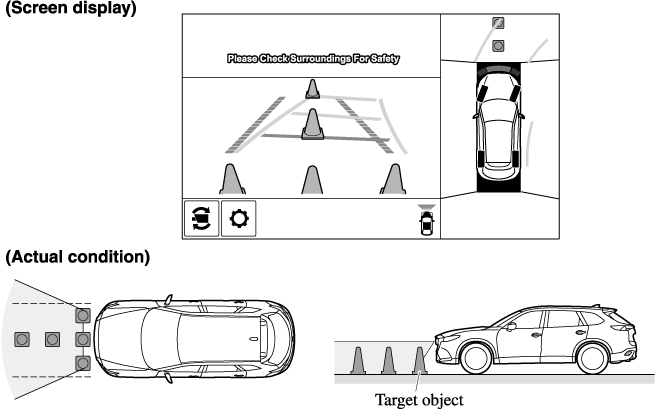

The parking sensor detection range has limitations. For example, obstructions closing in from the side and objects short in height may not be detected. Always confirm the safety around the vehicle visually when driving.

For details, refer to the parking sensor obstruction detection indication and warning sound.

Refer to Parking Sensor System (Search).

Close Caution
View Caution



The setting can be changed so that the projected vehicle path lines are not displayed.

Refer to Personalization Features (Search).

Close Note
View Note

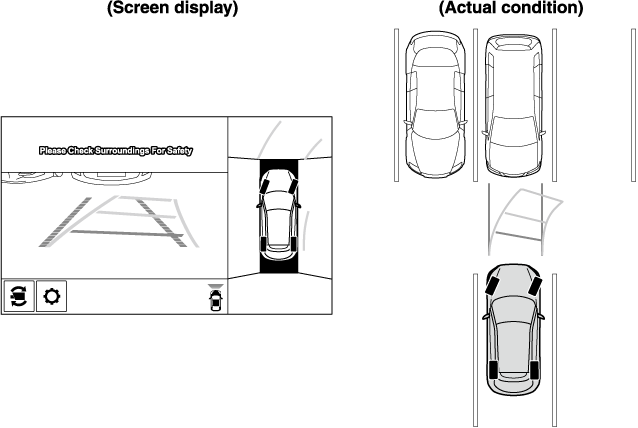

How to use the projected vehicle path line function

Make sure that there are no obstructions within the projected vehicle path lines.

Drive the vehicle forward while turning the steering wheel so that no obstructions come within the projected vehicle path lines.
