Start/Stop Engine

Ignition Switch

Ignition Switch

Push Button Start Positions

The system operates only when the key is within operational range.

Each time the push button start is pressed, the ignition switches in the order of off, ACC, and ON. Pressing the push button start again from ON switches the ignition off.



  • The engine starts by pressing the push button start while depressing the brake pedal. To switch the ignition position, press the push button start without depressing the pedal.

  • Do not leave the ignition switched ON while the engine is not running. Doing so could result in the battery going dead. If the selector lever is in the P position, and the ignition is in ACC, the ignition switches off automatically after about 25 minutes.

Close Note
View Note

Off

The power supply to electrical devices turns off and the push button start indicator light (amber) also turns off.



Before leaving the driver's seat, always switch the ignition off, set the parking brake, and make sure the selector lever is in P position:

Leaving the driver's seat without switching the ignition off, setting the parking brake, and shifting the selector lever to P position is dangerous. Unexpected vehicle movement could occur which could result in an accident.

In addition, if your intention is to leave the vehicle for even a short period, it is important to switch the ignition off, as leaving it in another position will disable some of the vehicle's security systems and run the battery down.

Close Warning
View Warning

ACC (Accessory)

Some electrical accessories will operate and the indicator light (amber) illuminates.



The keyless entry system does not function while the push button start has been pressed to ACC, and the doors will not lock/unlock even if they have been locked manually.

Close Note
View Note

ON

This is the normal running position after the engine is started. The indicator light (amber) turns off. (The indicator light (amber) illuminates when the ignition is switched ON and the engine is not running.)

Some indicator lights/warning lights should be inspected before the engine is started (Search).



When the push button start is pressed to ON, the sound of the fuel pump motor operating near the fuel tank can be heard. This does not indicate an abnormality.

Close Note
View Note
Starting the Engine

Engine Start Function When Key Battery is Dead



When starting the engine by holding the transmitter over the push button start due to a dead key battery or a malfunctioning key, be careful not to allow the following, otherwise the signal from the key will not be received correctly and the engine may not start.

  • Metal parts of other keys or metal objects touch the key.

  • Spare keys or keys for other vehicles equipped with an immobilizer system touch or come near the key.

  • Devices for electronic purchases, or security passage touch or come near the key.

Close Caution
View Caution

If the engine cannot be started due to a dead key battery, the engine can be started using the following procedure:

  1. Continue to depress the brake pedal firmly until the engine has completely started.

  2. Make sure that the push button start indication light (green) flashes.

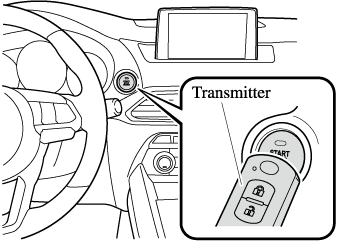

  3. Touch the push button start using the backside of the key (as shown) while the push button start indicator light (green) flashes.





    When touching the push button start using the backside of the key as shown in the illustration, touch the push button start with the lock switch side of the key facing up.

    Close Note
    View Note

  4. Make sure that the push button start indicator light (green) turns on.

  5. Press the push button start to start the engine.



    • The engine cannot be started unless the brake pedal is fully depressed.

    • If there is a malfunction with the push button start function, the push button start indicator light (amber) flashes. In this case, the engine may start, however, have the vehicle checked at an Authorized Mazda Dealer as soon as possible.

    • If the push button start indicator light (green) does not illuminate, perform the operation from the beginning again. If it does not illuminate, have the vehicle checked at an Authorized Mazda Dealer.

    • To switch the ignition position without starting the engine, perform the following operations after the push button start indicator light (green) turns on.

      1. Release the brake pedal.

      2. Press the push button start to switch the ignition position. The ignition switches in the order of ACC, ON, and off each time the push button start is pressed. To switch the ignition position again, perform the operation from the beginning.

    Close Note
    View Note

Emergency Operation for Starting the Engine

If the KEY warning light (red) illuminates, or the push button start indicator light (amber) flashes, this could indicate that the engine may not start using the usual starting method (for vehicles with a type A/type B instrument cluster (Search), messages are displayed in the instrument cluster). Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible. If this occurs, the engine can be force-started. Press and hold the push button start until the engine starts. Other procedures necessary for starting the engine such as having the key in the cabin, and depressing the brake pedal are required.
