Interior Equipment
Sunvisors
When you need a sunvisor, lower it for use in front or swing it to the side.
Side Extension Sunvisors (Some Models)
The visor extender extends the sunvisor's range of sun shading.
To use, pull it out.
When moving the sunvisor, retract the visor extender to its original position. Otherwise, the visor extender could hit the rearview mirror.
Vanity Mirrors
To use the vanity mirror, lower the sunvisor.
If your vehicle is equipped with a vanity mirror light, it will illuminate when you open the cover.
To prevent the battery from being discharged, the vanity mirror will only illuminate in the tilt range shown in the figure.
Interior Lights
-
Do not leave the lights on for long periods while the engine is turned off. Otherwise the battery power could be depleted.
Overhead Lights
Type A
|
Switch |
Overhead Lights |
|---|---|
|
|
The DOOR OFF switch can be switched between the DOOR position and DOOR OFF position. DOOR position
DOOR OFF position
|
|
|
Press the switch to turn it on. Press the switch again to turn off the lights. |
(DOOR OFF)Front
Center
Rear
Type B
|
Switch Position |
Overhead Lights |
|---|---|
 |
Light off |
 |
|
 |
Light on |
Front
Center
Rear
The rear overhead light and the center map lights also turn on and off when the front overhead light switch is operated.
Front Map Lights
Type A
Press the switch to illuminate the front map lights, and then press the switch again to turn them off.
The front map lights will not turn off even if the switch is pressed in the following cases:
-
The overhead lights turn on by operating the overhead ON/OFF switch (
). -
The overhead lights turn on in conjunction with a door opening/closing.
-
The illuminated entry system is on.
Type B
When the overhead light switch is in the door or off position, press the lens to illuminate the front map lights, and then press the lens again to turn them off.
The front map lights will not turn off even if the lens is pressed in the following cases:
-
The overhead light switch is in the ON position.
-
The overhead light switch is in the door position with the door open.
-
The illuminated entry system is on.
Center Map Lights
Type A
Press the switch to illuminate the center map lights, and then press the switch again to turn them off.
-
Once the center map lights have been turned off, they will turn on and off in conjunction with the overhead light operation.
-
The center map lights will not turn off even if the switch is pressed in the following cases:
-
The overhead lights turn on by operating the overhead ON/OFF switch (
). -
The overhead lights turn on in conjunction with a door opening/closing.
-
The illuminated entry system is on.
-
Type B
When the overhead light switch is in the door or off position, press the lens to illuminate a center map light, and then press the lens again to turn it off.
-
Once the center map lights have been turned off, they will turn on and off depending on the position to which the overhead light is switched.
-
The center map lights will not turn off even if the lens is pressed in the following cases:
-
The overhead light switch is ON.
-
The overhead light switch is in the door position with the door open.
-
The illuminated entry system is on.
-
Luggage Compartment Lights
|
Switch Position |
Luggage Compartment Light |
|---|---|
|
Light off |
|
Light on when the liftgate is open |
Ambient Light (Some Models)
The ambient lights continuously turn on when the ignition is switched ON.
The ambient lights dim when the parking lights or headlights are turned on.
-
The ambient lights turn on or off in conjunction with the illuminated entry system when the ignition is switched OFF.
-
The ambient light illumination level can be changed while the parking lights or headlights are turned on.
Refer to Personalization Features (Search).
Accessory Sockets
Only use genuine Mazda accessories or the equivalent requiring no greater than 120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or ON.
Rear
The accessory sockets can be used regardless of whether the ignition is on or off.
-
To prevent accessory socket damage or electrical failure, pay attention to the following:
-
Do not use accessories that require more than 120 W (DC 12 V, 10 A).
-
Do not use accessories that are not genuine Mazda accessories or the equivalent.
-
Close the cover when the accessory socket is not in use to prevent foreign objects and liquids from getting into the accessory socket.
-
Correctly insert the plug into the accessory socket.
-
Do not insert the cigarette lighter into the accessory socket.
-
-
Noise may occur on the audio playback depending on the device connected to the accessory socket.
-
Depending on the device connected to the accessory socket, the vehicle's electrical system may be affected, which could cause the warning light to illuminate. Disconnect the connected device and make sure that the problem is resolved. If the problem is resolved, disconnect the device from the socket and switch the ignition off. If the problem is not resolved, consult an Authorized Mazda Dealer.
To prevent discharging of the battery, do not use the socket for long periods with the engine off or idling.
USB Power Outlet (Some Models)
The USB power outlets can be used regardless of whether the ignition is switched to ACC or ON.
Only use USB devices that have a maximum power consumption of 10.5W (DC5V, 2.1A) or below.
-
To prevent USB power outlets damage or electrical failure, pay attention to the following:
-
Do not use USB devices that require more than 10.5 W (DC 5 V, 2.1 A).
-
Close the lid when the USB power outlets are not in use to prevent foreign objects and liquids from getting into the USB power outlets.
-
Correctly connect the USB connector into the USB power outlets.
-
-
The USB power outlets are designed only for charging and they cannot be used for connecting to the vehicle's audio system.
-
To prevent discharging of the battery, do not use the USB power outlets for long periods with the engine off or idling.
How to connect
The groove in the armrest box can be used to pass the cord of the device into the box to connect it to the USB power outlets.
-
Open the lid.
-
Route the cord through the groove in the armrest box and insert the USB connector into the USB power outlets.
Bottle Holder
Bottle holders are on the inside of the doors.
Do not use the bottle holders for containers without caps. The contents may spill when opening/closing the door or while driving the vehicle.
Storage Compartments
Keep storage boxes closed when driving:
Driving with the storage boxes open is dangerous. To reduce the possibility of injury in an accident or a sudden stop, keep the storage boxes closed when driving.
Do not put articles in storage spaces with no lid:
Putting articles in storage spaces with no lid is dangerous as they could be thrown around the cabin if the vehicle is suddenly accelerated and cause injury depending on how the article is stored.
Do not leave lighters or eyeglasses in the storage boxes while parked under the sun. A lighter could explode or the plastic material in eyeglasses could deform and crack from high temperature.
Overhead Console
This console box is designed to store eyeglasses or other accessories.
Push and release to open.
Glove Compartment
To open the glove compartment, pull the latch toward you.
To close the glove compartment, firmly press in the center of the glove compartment lid.
Center Console

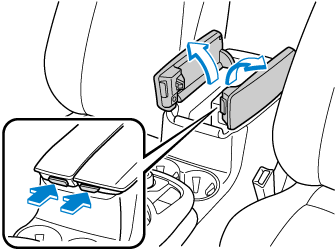

Armrest Box (Some Models)
To open, push the button and pull up the lid.
Luggage Compartment
Cargo Securing Loops
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.
Use the loops in the luggage compartment to secure cargo with a rope or net. The tensile strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the loops as it will damage them.
Cargo Sub-Compartment
Center cargo sub-compartment (Some Models)
Raise the luggage board to put small items in the cargo sub-compartment.
Side cargo sub-compartment
Open the cover to put small items in the cargo sub-compartment.
Loading golf bags
(Some golf bags may not fit using the following methods depending on their sizes.)
Up to two golf bags can be carried in the luggage compartment.
Bottom: Place the first golf bag in the luggage compartment with the bottoms pointed to the left.
Top: Place the second golf bag with its bottom pointed to the right in the luggage compartment.
Shopping Bag Hook
The shopping bag hook can be used for hanging shopping bags.
Do not hang excessive weight on the shopping bag hook as it could be damaged.
Rear Coat Hooks
Never hang heavy or sharp objects on the assist grips and coat hooks:
Hanging heavy or sharp-ended objects such as a coat hanger from the assist grips or coat hooks is dangerous as they can fly off and hit an occupant in the cabin if a curtain air bag was to deploy, which could result in serious injury or death.
Always hang clothes on the coat hooks and the assist grips without hangers.
