Owner Maintenance

Engine Compartment Overview

Engine Compartment Overview

Engine Oil

Recommended Oil

U.S.A., Canada, and Puerto Rico

Use SAE 5W-30 engine oil.

Mazda Genuine Oil is used in your Mazda vehicle. Mazda Genuine 5W-30 Oil is required to achieve optimum fuel economy.



For maintenance service, Mazda recommends Mazda Genuine Parts and Castrol® (U.S.A. only).

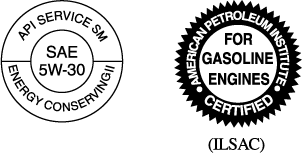

Only use SAE 5W-30 oil “Certified For Gasoline Engines” by the American Petroleum Institute (API).

Oil with this trademark symbol conforms to the current engine and emission system protection standards and fuel economy requirements of the International Lubricant Standardization and Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers.



Except U.S.A., Canada, and Puerto Rico

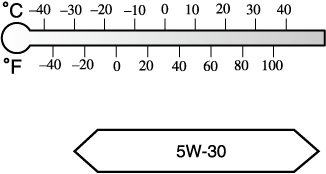

Use SAE 5W-30 engine oil.

Oil container labels provide important information.

A chief contribution this type of oil makes to fuel economy is reducing the amount of fuel necessary to overcome engine friction.



For maintenance service, Mazda recommends Mazda Genuine Parts and Castrol® (Mexico only).





(Mexico)

Use SAE 5W-30 engine oil. If SAE 5W-30 engine oil is not available, use SAE 0W-30 or SAE 10W-30 engine oil.



The quality designation SM or SN, or ILSAC must be on the label.



Inspecting Engine Oil Level

  1. Be sure the vehicle is on a level surface.

  2. Warm up the engine to normal operating temperature.

  3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.

  4. Pull out the dipstick, wipe it clean, and reinsert it fully.



  5. Pull it out again and examine the level.

    The level is normal if it is between the MIN and MAX marks.

    If it is near or below MIN, add enough oil to bring the level to MAX.



    Do not overfill the engine oil. This may cause engine damage.

    Close Caution
    View Caution

  6. Make sure the O-ring on the dipstick is positioned properly before reinserting the dipstick.

  7. Reinsert the dipstick fully.

Engine Coolant

Engine Coolant

Brake Fluid

Inspecting Brake Fluid Level



If the brake fluid level is low, have the brakes inspected:

A low brake fluid level is dangerous.

A low level could indicate brake lining wear or a brake system leak which could cause the brakes to fail and lead to an accident.

Close Warning
View Warning

Inspect the fluid level in the reservoir regularly. It should be kept between the MAX and MIN lines.

The level normally drops with accumulated distance, a condition associated with wear of brake linings. If it is excessively low, have the brake system inspected by an Authorized Mazda Dealer.

Washer Fluid

Washer Fluid

Wiper Blades

Wiper Blades



  • Hot waxes applied by automatic car washers have been known to affect the wiper's ability to clean windows.

  • To prevent damage to the wiper blades, do not use gasoline, kerosene, paint thinner, or other solvents on or near them.

  • When the wiper lever is in the AUTO position and the ignition is switched ON, the wipers may move automatically in the following cases:

    • If the windshield above the rain sensor is touched.

    • If the windshield above the rain sensor is wiped with a cloth.

    • If the windshield is struck with a hand or other object.

    • If the rain sensor is struck with a hand or other object from inside the vehicle.

    Be careful not to pinch hands or fingers as it may cause injury, or damage the wipers. When washing or servicing the vehicle, make sure the wiper lever is in the OFF position.

Close Caution
View Caution

Contamination of either the windshield or the blades with foreign matter can reduce wiper effectiveness. Common sources are insects, tree sap, and hot wax treatments used by some commercial car washes.



If the blades are not wiping properly, clean the window and blades with a good cleaner or mild detergent; then rinse thoroughly with clean water. Repeat if necessary.

Battery

Battery Maintenance

To get the best service from a battery:

  • Keep it securely mounted.

  • Keep the top clean and dry.

  • Keep terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.

  • Rinse off spilled electrolyte immediately with a solution of water and baking soda.

  • If the vehicle will not be used for an extended time, disconnect the battery cables and charge the battery every 6 weeks.

Tires

Replacing a Wheel



Always use wheels of the correct size on your vehicle:

Using a wrong-sized wheel is dangerous. Braking and handling could be affected, leading to loss of control and an accident.

Close Warning
View Warning



A wrong-sized wheel may adversely affect:

  • Tire fit

  • Wheel and bearing life

  • Ground clearance

  • Snow-chain clearance

  • Speedometer calibration

  • Headlight aim

  • Bumper height

  • Tire Pressure Monitoring System (Some Models)

Close Caution
View Caution



  • When replacing a wheel, make sure the new one is the same as the original factory wheel in diameter, rim width, and offset (inset/outset).

  • For details, contact an Authorized Mazda Dealer.

Close Note
View Note



Proper tire balancing provides the best riding comfort and helps reduce tread wear. Out-of-balance tires can cause vibration and uneven wear, such as cupping and flat spots.

Fuses

Fuses

Your vehicle's electrical system is protected by fuses.



If any lights, accessories, or controls do not work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.



If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible.
