Instrument Cluster and Display
Instrument Cluster and Display
Instrument Cluster (Type A)
Dashboard Illumination
Maintenance Monitor
The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.
-
Scheduled Maintenance
-
Tire Rotation
-
Oil Change
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.
Refer to Maintenance Monitor (Search).
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
Displays the system status.
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).
Distance Recognition Support System (DRSS) Display (Some Models)
Displays the distance between your vehicle and the vehicle ahead.
Refer to Distance Recognition Support System (DRSS) (Search).
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Indicator |
Page |
|---|---|---|
 (Green) |
Seat Belt Indicator Light (Rear seat) (Some Models) |
(Search) |
 |
Front Passenger Air Bag Deactivation Indicator Light*1 |
(Search) |
 |
Security Indicator Light*1 |
(Search) |
 |
Wrench Indication |
(Search) |
 |
Shift Position Indication |
(Search) |
 |
Lights-On Indication/Indicator Light |
(Search) |
 |
Headlight High-Beam Indicator Light |
Headlight High-Low Beam (Search) |
|
Flashing the Headlights (Search) |
||
 |
Turn Signal/Hazard Warning Indicator Lights |
Turn and Lane-Change Signals (Search) |
|
Hazard Warning Flasher (Search) |
||
 |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light*1 (Some Models) |
(Search) |
 |
TCS/DSC Indicator Light*1 |
Traction Control System (TCS) (Search) |
|
Dynamic Stability Control (DSC) (Search) |
||
|
Turns on (Search) |
||
 |
TCS OFF Indicator Light*1 |
(Search) |
 |
Select Mode Indication |
(Search) |
 (Green) |
High Beam Control System (HBC) Indicator Light |
(Search) |
 |
Blind Spot Monitoring (BSM) OFF Indicator Light*1 |
Malfunction (Search) |
|
Except malfunction (Search) |
||
 (White) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models) |
(Search) |
 (Green) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models) |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light*1 (Some Models) |
(Search) |
 |
Smart City Brake Support (SCBS) Indication (Some Models) |
Advanced Smart City Brake Support (Advanced SCBS) (Search) |
|
Smart City Brake Support (SCBS) (Search) |
||
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models) |
Advanced Smart City Brake Support (Advanced SCBS) (Search) |
|
Smart City Brake Support (SCBS) (Search) |
||
|
Smart Brake Support (SBS) System (Search) |
||
 (White) |
Cruise Main Indication (Some Models) |
(Search) |
 (Green) |
Cruise Set Indication (Some Models) |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Wrench Indicator Light
The wrench indication is displayed under the following conditions.
-
When the preset maintenance period has arrived.
Refer to Maintenance Monitor (Search).
-
When the engine oil replacement period has arrived.
-
The wrench indication may display earlier than the preset period depending on vehicle usage conditions.
-
Whenever the engine oil is replaced, a reset of the vehicle engine control unit necessary.
Your Authorized Mazda Dealer will be able to reset the engine control unit or see (Search) for the Vehicle engine control unit reset procedure.
Instrument Cluster (Type B)
Speedometer
The speedometer indicates the speed of the vehicle.
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Multi-information Display (Type B)
The multi-information display indicates the following information.
-
Odometer
-
Trip meter
-
Engine coolant temperature gauge
-
Fuel gauge
-
Outside temperature
-
Distance-to-empty
-
Average fuel economy
-
Current fuel economy
-
Maintenance Monitor
-
Blind Spot Monitoring (BSM) Display
-
Distance Recognition Support System (DRSS) Display
-
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display
-
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
-
Cruise Control Display
-
Compass Display
-
Warning message
The screen content changes each time the INFO switch is pressed.
Odometer, Trip Meter and Trip Meter Selector
The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.
Odometer
The odometer records the total distance the vehicle has been driven.
Trip meter
The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.
For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.
When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.
The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.
-
Only the trip meters record tenths of kilometers (miles).
-
The trip record will be erased when:
-
The power supply is interrupted (blown fuse or the battery is disconnected).
-
The vehicle is driven over 9999.9 km (mile).
-
Fuel Gauge
The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.
If the fuel level is low, (
) and (
) turn an amber color. Refuel as soon as possible.
Refer to Taking Action (Search).
-
After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
-
The direction of the arrow (
) indicates that the fuel-filler lid is on the left side of the vehicle.
Dashboard Illumination
(Without auto-light control)
When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.
(With auto-light control)
When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.
-
(With auto-light control)
When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.
-
When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.
Refer to Headlights (Search).

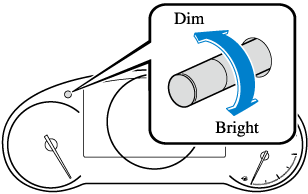

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.
-
The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.
-
The brightness increases by rotating the knob to the right.
Function for canceling illumination dimmer
The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.
-
The illumination dimmer can be canceled by pressing the dashboard illumination knob.
-
When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.
-
When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.
Distance-to-empty
This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.
The distance-to-empty will be calculated and displayed every second.
-
Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
-
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
-
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
-
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.
Current Fuel Economy
This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.
Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.
