Instrument Cluster and Display
Speedometer
The speedometer indicates the speed of the vehicle.
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Speed Unit Selector
In some countries, you may have to change the speed units between km/h and mph.
When pressing the selector knob, the speed units in the instrument cluster will change.
Outside Temperature Display
When the ignition is switched ON, the outside temperature is displayed.
-
Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:
-
Significantly cold or hot temperatures.
-
Sudden changes in outside temperature.
-
The vehicle is parked.
-
The vehicle is driven at low speeds.
-
Changing the Temperature Unit of the Outside Temperature Display
The outside temperature unit can be switched between Celsius and Fahrenheit.
Settings can be changed by operating the center display screen.
Refer to Personalization Features (Search).
When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.
Distance-to-empty
This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.
The distance-to-empty will be calculated and displayed every second.
-
Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
-
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
-
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
-
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.
Average Fuel Economy
The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.
The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.
Current Fuel Economy
This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.
The average fuel economy for TRIP A is indicated by a blue arrow.
Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.
Maintenance Monitor
The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.
-
Scheduled Maintenance
-
Tire Rotation
-
Oil Change
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.
Refer to Maintenance Monitor (Search).
Distance Recognition Support System (DRSS) Display (Some Models)
Displays the distance between your vehicle and the vehicle ahead.
Refer to Distance Recognition Support System (DRSS) (Search).
Warning (Display Indication)
A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.
If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes (Search).
For messages not indicating a symbol, follow the instructions indicated in the multi-information display.
Refer to Message Indicated in Multi-information Display (Search).
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Warning |
Page |
|---|---|---|
 |
Brake System Warning Indication/Warning Light*1*2 |
(Search) |
 |
ABS Warning Light*1 |
Electronic Brake Force Distribution System Warning (Search) |
|
ABS warning (Search) |
||
 |
Charging System Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Warning Light*1 |
(Search) |
 |
High Engine Coolant Temperature Warning Indication |
(Search) |
 |
Power Steering Malfunction Indication |
(Search) |
 |
Master Warning Indication |
(Search) |
 |
Electric Parking Brake (EPB) Warning Indication/Warning Light*1 |
(Search) |
 |
Check Engine Light*1 |
(Search) |
 |
Automatic Transaxle Warning Indication |
(Search) |
 |
AWD Warning Indication (Some Models) |
(Search) |
 |
Air Bag/Front Seat Belt Pretensioner System Warning Light*1 |
(Search) |
 |
Tire Pressure Monitoring System Warning Light*1 (Some Models) |
Flashing (Search) |
|
Turns on (Search) |
||
 (Amber/White) |
KEY Warning Indication |
Amber (Search) |
|
White (Search) |
||
 (Amber) |
High Beam Control System (HBC) Warning Indication/Warning Light*1 |
(Search) |
 |
Blind Spot Monitoring (BSM) Warning Indication |
(Search) |
 (Amber) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models) |
(Search) |
 (Amber) |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication |
(Search) |
 |
LED Headlight Warning Light*1 |
(Search) |
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models) |
(Search) |
 |
Low Fuel Warning Indication/Warning Light |
(Search) |
 |
Check Fuel Cap Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Level Warning Light*1 |
(Search) |
 |
Seat Belt Warning Light (Front seat) |
(Search) |
 (Red) |
Seat Belt Warning Light (Rear seat) (Some Models) |
(Search) |
 |
Low Washer Fluid Level Warning Indication (Some Models) |
(Search) |
 |
Door-Ajar Warning Indication |
(Search) |
 |
Liftgate-Ajar Warning Indication |
(Search) |
 |
Door-Ajar Warning Light |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
-
The light turns on continuously when the parking brake is applied.
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Distance-to-empty
This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.
The distance-to-empty will be calculated and displayed every second.
-
Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
-
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
-
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
-
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.
Maintenance Monitor
The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.
-
Scheduled Maintenance
-
Tire Rotation
-
Oil Change
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.
Refer to Maintenance Monitor (Search).
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)
Displays the currently set system status.
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).
Distance Recognition Support System (DRSS) Display (Some Models)
Displays the distance between your vehicle and the vehicle ahead.
Refer to Distance Recognition Support System (DRSS) (Search).
Cruise Control Set Vehicle Speed Display (Some Models)
Compass Display
The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.
|
Display |
Direction |
|---|---|
|
N |
North |
|
S |
South |
|
E |
East |
|
W |
West |
|
NE |
Northeast |
|
NW |
Northwest |
|
SE |
Southeast |
|
SW |
Southwest |
Warning (Display Indication)
A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.
If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes (Search).
For messages not indicating a symbol, follow the instructions indicated in the multi-information display.
Refer to Message Indicated in Multi-information Display (Search).
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Wrench Indicator Light
The wrench indication is displayed under the following conditions.
-
When the preset maintenance period has arrived.
Refer to Maintenance Monitor (Search).
-
When the engine oil replacement period has arrived.
-
The wrench indication may display earlier than the preset period depending on vehicle usage conditions.
-
Whenever the engine oil is replaced, a reset of the vehicle engine control unit necessary.
Your Authorized Mazda Dealer will be able to reset the engine control unit or see (Search) for the Vehicle engine control unit reset procedure.
Low Engine Coolant Temperature Indicator Light (Blue)
The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.
Instrument Cluster (Type C)

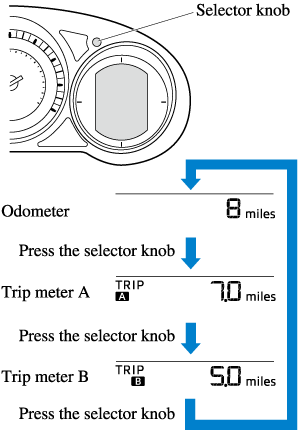

Odometer, Trip Meter and Trip Meter Selector
Engine Coolant Temperature Gauge
Displays the engine coolant temperature. The white gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.
If the engine coolant temperature gauge needle (white) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.
Refer to Overheating (Search).
-
If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
-
The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.
Refer to Personalization Features (Search).
-
During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).
