Doors and Locks

Door Locks




Always take all children and pets with you or leave a responsible person with them:

Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot weather, temperatures inside a vehicle can become high enough to cause brain damage or even death.

Do not leave the key in your vehicle with children and keep them in a place where your children will not find or play with them:

Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed.

Keep all doors locked when driving:

Unlocked doors in a moving vehicle are dangerous. Passengers can fall out if a door is accidentally opened and can more easily be thrown out in an accident.

Always close all the windows and moonroof, lock the doors and the liftgate and take the key with you when leaving your vehicle unattended:

Leaving your vehicle unlocked is dangerous as children could lock themselves in a hot vehicle, which could result in death. Also, a vehicle left unlocked becomes an easy target for thieves and intruders.

After closing the doors and the liftgate, always verify that they are securely closed:

Doors and the liftgate not securely closed are dangerous, if the vehicle is driven with a door and the liftgate not securely closed, the door and the liftgate could open unexpectedly resulting in an accident.

Always confirm the safety around the vehicle before opening a door and the liftgate:

Suddenly opening a door and the liftgate is dangerous. A passing vehicle or a pedestrian could be hit and cause an accident.




  • Always confirm the conditions around the vehicle before opening/closing the doors and the liftgate and use caution during strong winds or when parked on an incline. Not being aware of the conditions around the vehicle is dangerous because fingers could get caught in the door and the liftgate or a passing pedestrian could be hit, resulting in an unexpected accident or injury.




  • Always stop the engine and lock the doors. In addition, to prevent theft of valuables, do not leave them inside the cabin.

  • If the key is left in the following areas and you leave the vehicle, the doors may be locked depending on the radio wave conditions even if the key is left in the vehicle.

    • Around the dashboard

    • In the storage compartments such as the glove compartment or the center console

    • Next to a communication device such as a mobile phone

  • When the ignition is switched to ACC or ON, the vehicle lock-out prevention feature prevents you from locking yourself out of the vehicle.

    All doors and the liftgate will automatically unlock if they are locked using the power door locks with any door or the liftgate open.

    The vehicle lock-out prevention feature does not operate while the ignition is switched off.

    When all doors and the liftgate are locked using the power door lock with any door or the liftgate open, the closed doors and the liftgate are locked. After that, when all doors and the liftgate are closed, all doors and the liftgate are locked. However, if the key is inside the vehicle, all doors and the liftgate are automatically unlocked.

    (With the advanced keyless function)

    The beep sound is heard for about 10 seconds to notify the driver that the key has been left in the vehicle.

    (Without the advanced keyless function)

    The horn sound is heard twice to notify the driver that the key has been left in the vehicle.

  • (Door unlock (control) system with collision detection)

    This system automatically unlocks the doors and the liftgate in the event the vehicle is involved in an accident to allow passengers to get out of the vehicle immediately and prevent being trapped inside. While the ignition is switched ON and in the event the vehicle receives an impact strong enough to inflate the air bags, all the doors and the liftgate are automatically unlocked after about 6 seconds have elapsed from the time of the accident.

    The doors and the liftgate may not unlock depending on how an impact is applied, the force of the impact, and other conditions of the accident.

    If door-related systems or the battery is malfunctioning, the doors and the liftgate will not unlock.

Locking, Unlocking with Request Switch (With the advanced keyless function)

All doors and the liftgate can be locked/unlocked by pressing the request switch on the front doors while the key is being carried.

The request switch on the liftgate can only be used to lock all doors and the liftgate.

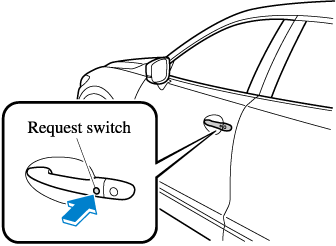

Front doors

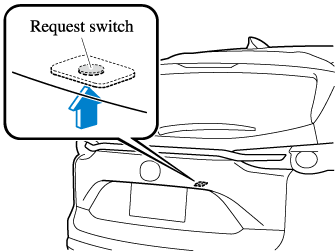

Liftgate (Lock only)

To lock

To lock the doors and the liftgate, press the request switch and the hazard warning lights will flash once.

A beep sound will be heard once.

To unlock

Driver's door request switch

To unlock the driver's door, press the request switch. A beep sound will be heard twice and the hazard warning lights will flash twice.

To unlock all doors and the liftgate, press the request switch again within three seconds and two more beep sounds will be heard.

Front passenger door request switch

To unlock all doors and the liftgate, press the request switch. A beep sound will be heard twice and the hazard warning lights will flash twice.




  • The system can be set to unlock all doors by performing a single operation.

    Refer to Personalization Features (Search).

    Use the following procedure to change the setting.

    1. Switch the ignition off and close all of the doors and the liftgate.

    2. Open the driver's door.

    3. Within 30 seconds of opening the driver's door, press and hold the UNLOCK button on the key for 5 seconds or longer (the sound of the doors locking/unlocking can be heard).

      After this, the system switches the setting of pressing the driver's request switch once or twice to unlock all doors and the liftgate each time the UNLOCK button is pressed (the sound of the doors locking/unlocking can be heard).

    4. The setting change is completed by doing any one of the following:

      • Switching the ignition to ACC or ON.

      • Closing the driver's door.

      • Opening the liftgate.

      • Not operating the key for ten seconds.

      • Pressing any button except the UNLOCK button on the key.

      • Pressing a request switch.

  • Confirm that all doors and the liftgate are securely locked.

    For the liftgate, move it without pressing the electric liftgate opener to verify that the liftgate has not been left ajar.

  • All doors and the liftgate cannot be locked when any door or the liftgate is open.

  • It may require a few seconds for the doors to unlock after the request switch is pressed.

  • A beep sound is heard for confirmation when the doors and the liftgate are locked/unlocked using the request switch. If you prefer, the beep sound can be turned off.

    The volume of the beep sound can also be changed. Refer to Personalization Features (Search).

    Use the following procedure to change the setting.

    1. Switch the ignition off and close all of the doors and the liftgate.

    2. Open the driver's door.

    3. Within 30 seconds of opening the driver's door, press and hold the LOCK button on the key for 5 seconds or longer (All of the doors and the liftgate are locked and unlocked when the LOCK button on the key is pressed and held for 5 seconds.).

      The beep sound activates at the currently set volume. The setting changes each time the LOCK button on the key is pressed and the beep sound activates at the set volume. (If the beep sound has been set to not activate, it will not activate.)

    4. The setting change is completed by doing any one of the following:

      • Switching the ignition to ACC or ON.

      • Closing the driver's door.

      • Opening the liftgate.

      • Not operating the key for ten seconds.

      • Pressing any button except the LOCK button on the key.

      • Pressing a request switch.

  • (With theft-deterrent system)

    The hazard warning lights flash when the theft-deterrent system is armed or turned off.

    Refer to Theft-Deterrent System (Search).

  • The setting can be changed so that the doors and the liftgate are locked automatically without pressing the request switch.

    Refer to Personalization Features (Search).

    (Walk-away auto lock function)

    A beep sound is heard when all doors and the liftgate are closed while the advanced key is being carried. All doors and the liftgate are locked automatically after about three seconds when the advanced key is out of the operational range. Also, the hazard warning lights flash once. (Even if the driver is in the operational range, all doors and the liftgate are locked automatically after about 30 seconds.) If you are out of the operational range before the doors and the liftgate are completely closed or another key is left in the vehicle, the walk-away auto lock function will not work. Always make sure that all doors and the liftgate are closed and locked before leaving the vehicle. The walk-away auto lock function does not close the power windows.

  • (Auto re-lock function)

    After unlocking with the request switch, all doors and the liftgate will automatically lock if any of the following operations are not performed within about 60 seconds. If your vehicle has a theft-deterrent system, the hazard warning lights will flash for confirmation.

    The time required for the doors to lock automatically can be changed.

    Refer to Personalization Features (Search).

    • Opening a door or the liftgate.

    • Switching the ignition to any position other than off.

Rear Door Child Safety Locks

These locks are intended to help prevent children from accidentally opening the rear doors. Use them on both rear doors whenever a child rides in the rear seat of the vehicle.



If you slide the child safety lock to the lock position before closing that door, the door cannot be opened from the inside. The door can only be opened by pulling the outside handle.
