Switches and Controls
Headlights
Turn the headlight switch to turn the headlights and other exterior lights on or off.
When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.
-
If the light switch is left on, the lights will automatically switch off approximately 30 seconds after switching the ignition off.
The time setting can be changed.
Refer to Personalization Features (Search).
-
To prevent discharging the battery, do not leave the lights on while the engine is off unless safety requires them.
Without auto-light control
|
Switch Position |
 |
 |
 |
|||
|---|---|---|---|---|---|---|
|
Ignition Position |
ON |
ACC or OFF |
ON |
ACC or OFF |
ON |
ACC or OFF |
|
Headlights |
Off |
Off |
Off |
Off |
On |
On*2 |
|
Daytime running lights |
On*1 |
Off |
On*1 |
Off |
Off |
Off |
|
Taillights Parking lights License plate lights Side-marker lights |
Off |
Off |
On |
On*2 |
On |
On*2 |
-
The lights are turned on while the vehicle is driven.
-
The lights are turned on for the specified period by the auto headlight off function.
With auto-light control
|
Switch Position |
|
 |
|
|
||||
|---|---|---|---|---|---|---|---|---|
|
Ignition Position |
ON |
ACC or OFF |
ON |
ACC or OFF |
ON |
ACC or OFF |
ON |
ACC or OFF |
|
Headlights |
Off |
Off |
Auto*2 |
Auto*4 |
Off |
Off |
On |
On*5 |
|
Daytime running lights |
On*1 |
Off |
On*3 |
Off |
On*1 |
Off |
Off |
Off |
|
Taillights Parking lights License plate lights Side-marker lights |
Off |
Off |
Auto*2 |
Auto*4 |
On |
On*5 |
On |
On*5 |
-
The lights are turned on while the vehicle is driven.
-
The lights are turned on by the auto light function.
-
The lights are turned on while the vehicle is driven, and turned off when the headlights are turned on by the auto light function.
-
The lights are turned on continuously if the ignition is switched from ON to any other position with the lights turned on. The lights are turned on for the specified period by the auto headlight off function.
-
The lights are turned on for the specified period by the auto headlight off function.
Auto-light control (Some Models)
When the headlight switch is in the position and the ignition is switched ON, the light sensor senses the surrounding lightness or darkness and automatically turns the headlights and other exterior lights on or off.
-
Do not shade the light sensor by adhering a sticker or a label on the windshield. Otherwise the light sensor will not operate correctly.
-
The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and scrapers clear of the windshield when the wiper lever is in the
position and the ignition is switched ON as fingers could be pinched or the wipers and wiper blades could be damaged when the wipers activate automatically. If you are going to clean the windshield, be sure the wipers are turned off completely when it is particularly tempting to leave the engine running. This is particularly important when clearing ice and snow.
-
The headlights and other exterior lights may not turn off immediately even if the surrounding area becomes well-lit because the light sensor determines that it is night time if the surrounding area is continuously dark for several minutes such as inside long tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the
position. -
If the headlight switch and the windshield wiper switch are in
, and the wipers are operated at low or high speed by the auto wiper control for several seconds, bad weather conditions are determined and the headlights may be turned on. -
The sensitivity of the auto-light control may be changed.
Refer to Personalization Features (Search).
Lane-Change Signals
Move the lever halfway toward the direction of the lane change―until the indicator flashes― and hold it there. It will return to the off position when released.
Rear Window Wiper
Turn the wiper on by turning the rear wiper/washer switch.
|
Switch Position |
Wiper operation |
|---|---|
|
Stop |
 |
Intermittent |
 |
Normal |

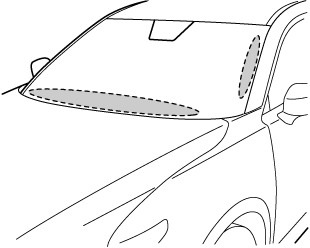

Windshield Wiper De-icer (Some Models)
HomeLink Wireless Control System (Type A) (Some Models)
HomeLink and HomeLink house icon are registered trademarks of Gentex Corporation.
The HomeLink system replaces up to 3 hand-held transmitters with a single built-in component in the auto-dimming mirror. Pressing the HomeLink button on the auto-dimming mirror activates garage doors, gates and other devices surrounding your home.
Do not use the HomeLink system with any garage door opener that lacks the safety stop and reverse feature:
Using the HomeLink system with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards is dangerous. (This includes garage doors manufactured before April 1, 1982.)
Using these garage door openers can increase the risk of serious injury or death. For further information, contact HomeLink at 1-800-355-3515 or www.homelink.com or an Authorized Mazda Dealer.
Always check the areas surrounding garage doors and gates for people or obstructions before programming or during operation of the HomeLink system:
Programming or operating the HomeLink system without verifying the safety of areas surrounding garage doors and gates is dangerous and could result in an unexpected accident and serious injury if someone were to be hit.
Operating the HomeLink System
Press the programmed HomeLink button to operate a programmed device. The code will continue being transmitted for a maximum of 20 seconds.
Garage Door Two-Way Communication
The garage door two-way communication is a function that communicates with the garage door opener and indicates whether the garages door is open or closed using the indicator lights in the rear view mirror. It can indicate the status of the garage door within a range up-to 250 m (820 ft).
Programming two-way communication
Within five seconds after programming a new HomeLink button, both of the garage door status indicator lights will flash rapidly in green indicating that the garage door two-way communication has been established. If the garage door status indicator lights flash, the two-way communication programming is complete.
If the garage door status indicator lights do not flash, the two-way communication programming is not completed. For additional HomeLink information and programming videos, refer to the following Websites:
Operating the garage door two-way communication
By pressing HomeLink buttons 1 and 2 at the same time for two seconds, the status of the garage door is indicated for about 3 seconds as follows:
|
Garage door status |
Indicator light |
|---|---|
|
Closing |
Amber flashes |
 |
|
|
Opening |
Amber flashes |
 |
|
|
Closed |
Green turns on |
 |
|
|
Opened |
Green turns on |
 |
|
