Doors and Locks

Door Locks

Door Locks

Locking, Unlocking with Transmitter

The following locations can be locked/unlocked by operating the keyless entry system transmitter. Refer to Keyless Entry System (Search).

  • All doors

  • Charger lid

  • Liftgate

Auto Lock/Unlock Function

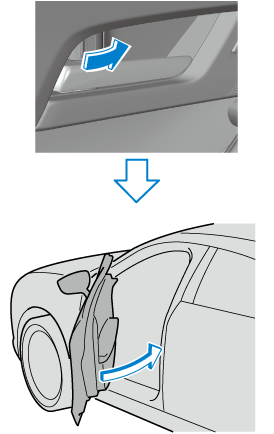

Do not pull the inner handle on a front door:

Pulling the inner handle on a front door while the vehicle is moving is dangerous. Passengers can fall out of the vehicle if the door opens accidentally, which could result in death or serious injury.

Close Warning
View Warning

  • When the vehicle speed exceeds 20 km/h (12 mph), all the doors, charge lid, and liftgate lock automatically.

  • When the power switch is switched off, all the doors, charge lid, and liftgate unlock automatically.



If the doors, charge lid, and liftgate are unlocked by the auto lock/unlock function, it does not operate again until the doors or the liftgate are opened/closed, or the power switch is switched OFF.

The lock/unlock timing and the setting to make this function inoperable can be changed.

Refer to the Settings section in the Mazda Connect Owner's Manual.

Close Note
View Note

Locking, Unlocking with Door-Lock Knob

Operation from inside

To lock any door from the inside, press the door-lock knob.

To unlock, pull it outward.

This does not operate the other door locks.



  1. Unlocked: Red indicator

  2. Lock

  3. Unlock



Operation from outside

To lock any door using its door-lock knob from the outside, press the door-lock knob to the lock position and close the door (holding the door handle in the open position is not required).

This does not operate the other door locks.





When locking the door this way:

  • Be careful not to leave the key inside the vehicle. Make sure that you are carrying the key before closing the doors.

  • The doors cannot be locked using the driver's door lock knob if any door or liftgate is open when the power switch is switched to ACC or ON.

  • All the doors, charge lid , and liftgate are unlocked when the lock knob on all the doors is pressed down to the lock side and all the doors are closed with the transmitter left in the vehicle.

Close Note
View Note
Liftgate

Liftgate

Luggage Compartment

Luggage compartment cover (Some Models)



Do not place anything on top of the cover:

Placing luggage or other cargo on top of the luggage compartment cover is dangerous. During sudden braking or a collision, the cargo could become a projectile that could hit and injure someone.

Make sure luggage and cargo are secured before driving:

Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.

Close Warning
View Warning



  • Make sure the luggage compartment cover is firmly secured. If it is not firmly secured, it could unexpectedly disengage resulting in injury.

Close Caution
View Caution

The luggage compartment can be accessed by opening the liftgate when the straps are attached to the sides of the liftgate.



Removing the luggage compartment cover

This cover can be removed for more room.

  1. Remove the straps from the hooks.

  2. Press the luggage compartment cover upward from near the pins and remove the luggage compartment cover from the pins.

    1. Pin



  3. Lift the front end of the luggage compartment cover and remove it.
