Instrument Cluster and Display

Instrument Cluster

Multi-information Display

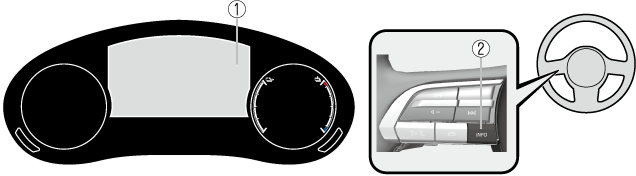

  1. Multi-information Display

  2. INFO switch



The multi-information display indicates the following information.

  • Speedometer

  • Odometer

  • Trip meter

  • Outside temperature

  • Remaining high voltage battery power

  • Distance-to-full discharge

  • Average energy efficiency

  • Instantaneous energy efficiency

  • Charge status display

  • i-ACTIVSENSE Display

  • Compass Display

  • Door-Ajar/Liftgate-Ajar Warning Indication*1

  • Message Display

  1. Displayed when opening door/liftgate.

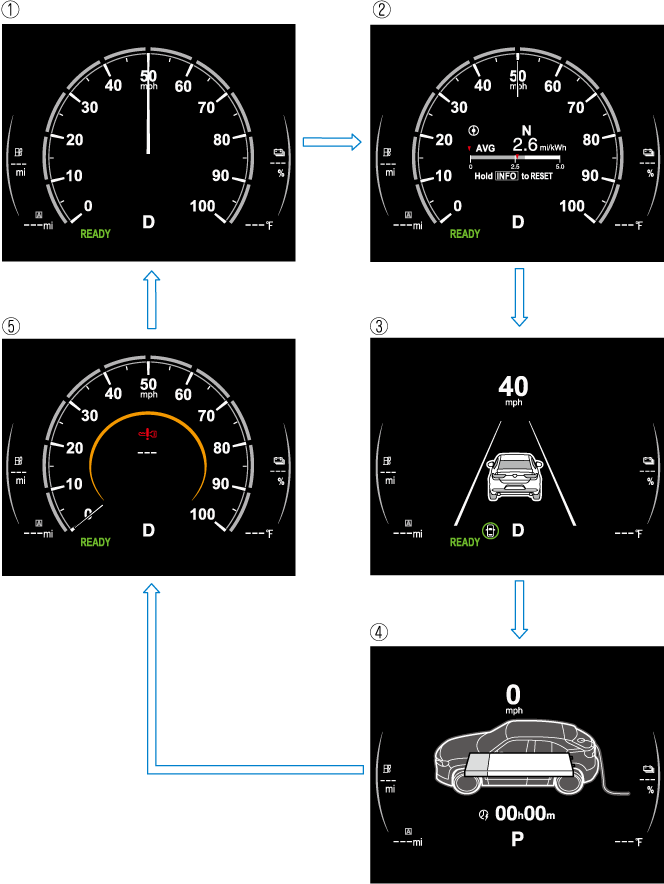

The screen content changes each time the INFO switch is pressed.



  1. Basic display

  2. Drive information display

  3. i-ACTIVSENSE display

  4. Charge status display*1

  5. Message display*2

  1. Displays only while charge connector is connected.

  2. Displayed only when a warning occurs.
