Interior Equipment
Sunvisors
Lower the sunvisor to block sunlight from the front.
To block sunlight from the side, lower and unhook the sunvisor, and then swing it to the side.
Side Extension Sunvisors
The visor extender extends the sunvisor's range of sun shading.
To use, pull it out.
When moving the sunvisor, retract the visor extender to its original position. Otherwise, the visor extender could hit the rearview mirror.
Accessory Sockets
AC Power Outlet (Some Models)
AC Power Outlet (120 V/150 W)
The AC power outlet can be used as a socket for accessories when the power switch is switched to ACC or ON.
Only use AC 120 V/60 Hz accessories that have a maximum power consumption of 150 W or below.
Never use medical instruments with the power outlet:
Otherwise, the operation of the medical device might be affected.
Heed the following cautions when using the AC power supply to prevent electrical shock, smoking, or combustion.
-
Be careful with the AC power outlet and plug during and after use.
-
Because an electrical appliance could operate at the moment it is plugged in, check the safety before plugging it in.
-
Do not plug accessories into the power outlet or unplug them with wet hands.
-
Be careful not to allow liquid to penetrate the AC power outlet.
-
Do not put anything other than plugs into the AC power outlet.
-
Do not disassemble the AC power outlet.
-
Do not use the AC power outlet if it is damaged. If part replacement or repair is required, consult an Authorized Mazda Dealer.
-
Always close the cover when it is not in use. If foreign matter or liquid penetrates the AC power outlet, it may cause a problem.
-
Insert electrical appliance plugs into the AC power outlet securely. If the plug is not inserted securely, it may heat excessively and blow a fuse.
-
Do not connect multiple electrical appliances to the AC power outlet. Otherwise, it could cause smoking or combustion.
-
Do not use electrical appliances that exceed the prescribed power capacity. Otherwise, it could cause a malfunction.
To prevent the lead-acid battery from depleting, do not use the socket for long periods with the EV system stopped.
How to connect
-
Open the lid.
-
Connect the plug to the AC power outlet.
-
Plug
-
-
Use electrical appliances only in the cabin. If they are used outside of the vehicle cabin, they may not operate correctly due to noise.
-
The following electrical appliances may not operate even if their electrical capacity is 150 W or lower.
-
Appliances requiring large amounts of power for activation (such as refrigerators with a compressor, electrical pumps, and electrical tools)
-
Appliances with a power supply frequency switch function (such as clocks and audio)
-
Appliances for precise data processing (such as measurement equipment)
-
-
Electrical appliances other than the above may not be used.
-
When using an electrical appliance for data processing such as a personal computer, back up the data frequently.
-
The protection function operates and the AC power outlet cannot be used in the following cases:
-
Battery power is weak
-
Appliances with a capacity of 150 W or higher are used
-
Cabin temperature is extremely hot
-
-
Noise may occur during radio operation depending on the electrical appliance being used.

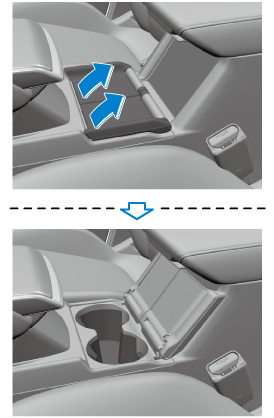

Cup Holder
Front
Assist Grips
Assist Grips
Never hang heavy or sharp objects on the assist grips and coat hooks:
Hanging heavy or sharp-ended objects such as a coat hanger from the assist grips or coat hooks is dangerous as they can fly off and hit an occupant in the cabin if a curtain air bag was to deploy, which could result in serious injury or death.
Do not use the assist grips when getting in and out of the vehicle or getting out of a seat:
An assist grip could break under a heavy load resulting in injury.
Use the assist grips to support your body while seated in the vehicle and while the vehicle is moving.
Rear Coat Hooks
Rear Coat Hooks
Never hang heavy or sharp objects on the assist grips and coat hooks:
Hanging heavy or sharp-ended objects such as a coat hanger from the assist grips or coat hooks is dangerous as they can fly off and hit an occupant in the cabin if a curtain air bag was to deploy, which could result in serious injury or death.
Always hang clothes on the coat hooks and the assist grips without hangers.
Storage Compartments
Storage Pocket
To use, open the lid.
Glove Compartment
To open the glove compartment, pull the latch toward you.
To close the glove compartment, firmly press in the center of the glove compartment lid.
Luggage Compartment
Cargo Securing Loops
Use the loops in the luggage compartment to secure cargo with a rope or net. The tensile strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the loops as it will damage them.
Cargo Sub-Compartment
-
Lift the luggage mat.
-
Luggage mat
-
