Cautions on Use

The e-SKYACTIV EV has high voltage areas and high temperature areas. Labels indicating the cautions on use are applied to these areas. Always follow the instructions on the label and use the vehicle correctly.



Be very careful of high voltage areas. In addition, do not disassemble, modify, or remove any high voltage parts:

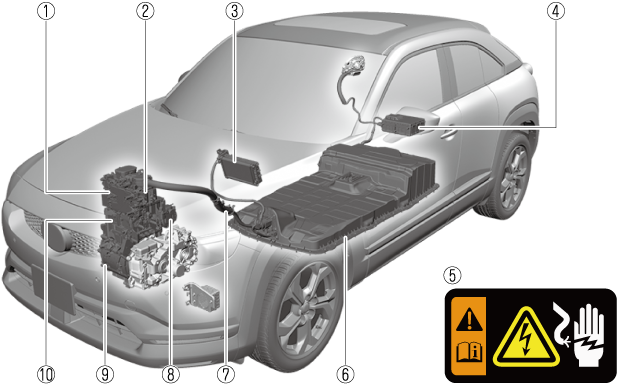

The following areas contain high voltage parts and may cause electrical shock if touched.

  1. DC-DC Converter

  2. Junction Box

  3. PTC Heater

  4. Onboard Charger

  5. Warning Label Example

  6. High Voltage Battery

  7. High Voltage Cable

  8. Electric Compressor

  9. Motor

  10. Inverter

Be very careful of high temperature areas:

Always follow the instructions on the labels inside the motor compartment. After driving, the motor temperature may be high.

Do not open the hood while the EV system or Climate Control Timer is operating or during timer charging, normal charging, or quick charging:

The cooling fan in the motor compartment may rotate suddenly and your hand, clothes, or accessories may touch the fan or become caught, resulting in serious injury or death.

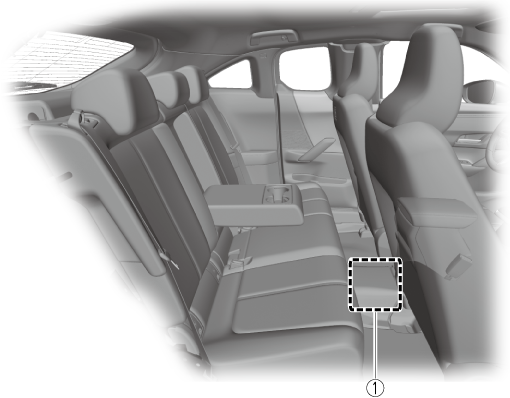

Do not touch the service plug:

A service plug is installed in the high voltage battery. This service plug is used at an Authorized Mazda Dealer when repairing vehicles in order to cut off the high voltage of the high voltage battery. Do not touch the service plug. If you handle the service plug mistakenly, it could lead to an electrical shock causing serious injury or death.

  1. Service plug

Close Warning
View Warning

Maintenance and Repairs

For vehicle maintenance or repairs, consult an Authorized Mazda Dealer.

Technical knowledge and skill are necessary in handling the high voltage battery.



To ensure safe and correct handling of the high voltage battery, always heed the following precautions:

  • Do not remove the high voltage battery.

  • Do not resell, transfer, or modify the high voltage battery.

  • Do not use the battery on vehicles other than those equipped with the high voltage battery.

If the high voltage battery is not handled properly, the following may occur which could lead to serious injury or death:

  • Touching an unattended high voltage battery may cause an electrical shock accident.

  • If the high voltage battery is used on a vehicle other than one equipped (including modified vehicles) with a high voltage battery, an electrical shock accident, heat generation, smoking, combustion, and explosions, or an electrolyte leakage may occur.

Close Warning
View Warning

Heed the following instructions to prevent deterioration of the high voltage battery or damage to the high voltage battery.

  • Do not leave the vehicle for a long time under extremely high or low temperature conditions.

  • Do not leave the vehicle for 14 days or longer while the high voltage battery is at 0 (zero) charge.



The high voltage battery has a certain battery life. The battery life differs depending on how the vehicle is used and the driving conditions.

Close Note
View Note

Accident Occurs

If the vehicle receives an impact of a certain level or greater in a collision, the EV system stops. In this case, the EV system malfunction warning indication/warning light displays/turns on and the EV system may not start. Contact an Authorized Mazda Dealer immediately.



Never touch electrical wiring that may be protruding into or outside of the cabin:

Otherwise, it could result in electrical shock and serious injury.

Never touch any area where electrolyte is visible or electrolyte is leaking from the area:

If any electrolyte from the high voltage battery gets in the eyes or on the skin, it could cause loss of vision or skin reactions. If this happens, immediately flush your eyes with water for 15 minutes or wash your skin with soap thoroughly and get medical attention.

Never approach objects that are on fire or extremely hot:

Electrolyte in the high voltage battery may cause a fire.

If the vehicle catches fire, extinguish the fire using a fire extinguisher (type ABC, BC, or C).

Only extinguish a fire with water when a large amount of water is available such as from a fire hydrant. Otherwise, it could lead to an accident.

Close Warning
View Warning

Approaching vehicle audible system

The approaching vehicle audible system notifies pedestrians of the vehicle approaching using a warning sound while driving at low speeds.

The approaching vehicle audible system operates under the following conditions.

  • The vehicle accelerates from a stop and the vehicle speed is 30 km/h (19 mph) or slower.

  • The vehicle decelerates and the vehicle speed is 25 km/h (16 mph) or slower.

  • You release your foot from the brake pedal with the selector lever in a position other than P.

Electronic sound

Electronic sound is a system that uses a speaker to emit sound into the cabin to notify the driver of the vehicle's behavior.

The electronic sound operates when all of the following conditions are met.

  • The selector lever is in a position other than N and P.

  • All the doors and the liftgate are closed.

  • Emergency braking is not being performed.
