The rear view monitor provides visual images of the rear of the vehicle when reversing.



Always drive carefully confirming the safety of the rear and the surrounding conditions by looking directly with your eyes:

Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident or a collision with an object. The rear view monitor is only a visual assist device when reversing the vehicle. The images on the screen may be different from the actual conditions.

Close Warning
View Warning



  • Do not use the rear view monitor under the following conditions: Using the rear view monitor under the following conditions is dangerous and could result in injury or vehicle damage or both.

    • Icy or snow-covered roads.

    • Tire chains or a temporary spare tire is installed.

    • The liftgate is not fully closed.

    • The vehicle is on a road incline.

    • Bumpy roads.

  • When the display is cold, images may course across the monitor or the screen and may be dimmer than usual, which could cause difficulty in confirming the surrounding conditions of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding conditions by looking directly with your eyes.

  • Do not apply excessive force to the camera. The camera position and angle may deviate.

  • Do not disassemble, modify, or remove it as it may no longer be waterproof.

  • The camera cover is made of plastic. Do not apply degreasing agents, organic solvents, wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off with a soft cloth immediately.

  • Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or lens may be scratched which might affect the images.

  • If a camera lens is severely damaged by flying gravel, have the camera replaced. For camera replacement, consult an Authorized Mazda Dealer.

Close Caution
View Caution



  • If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it cannot be wiped off, use a mild detergent.

  • If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view monitor may not operate correctly.

  • When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could result in deviation of the guide lines which appear on the display.

  • If the vehicle's front, side, or rear has been involved in a collision, the alignment of the rear view parking camera (location, installation angle) may have deviated. Always consult an Authorized Mazda Dealer to have the vehicle inspected.

  • If “No camera signal.” is indicated in the display, there could be a problem with the camera. Have your vehicle inspected at an Authorized Mazda Dealer.

Close Note
View Note

Displayable Range on the Screen

The images on the screen may be different from the actual conditions.

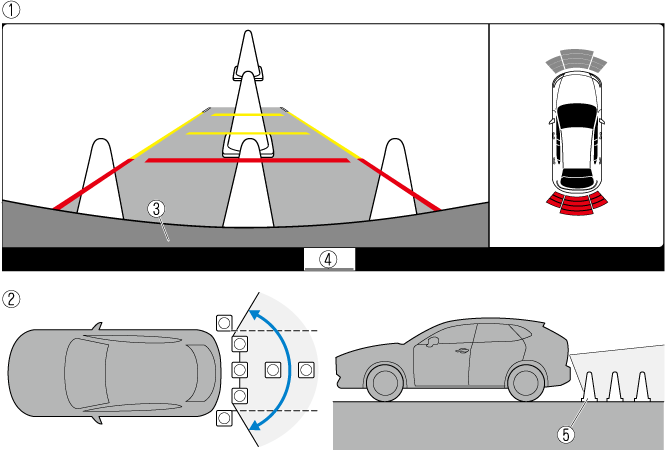

  1. (Screen display)

  2. (Actual view)

  3. Bumper

  4. “Check surroundings for safety.” message is displayed

  5. Object



  • The displayable range varies depending on the vehicle and road conditions.

  • If the camera lens is touched or there is any dirt on it, it could affect the screen image. Wipe the lens using a soft cloth.

  • The displayable range is limited. Objects under the bumper or around the bumper ends cannot be displayed.

  • The distance appearing in the displayed image is different from the actual distance because the rear view parking camera is equipped with a specific lens.

  • Images displayed on the monitor from the rear view parking camera are reversed images (mirror images).

  • Some optionally installed vehicle accessories may be picked up by the camera. Do not install any optional parts that can interfere with the camera view, such as illuminating parts or parts made of reflective material.

  • It may be difficult to see the display under the following conditions, however, it does not indicate a malfunction.

    • In darkened areas.

    • When the temperature around the lens is high/low.

    • When the camera is wet such as on a rainy day or during periods of high humidity.

    • When foreign material such as mud is stuck around the camera.

    • When the camera lens reflects sunlight or headlight beams.

    • The surroundings are illuminated by vehicle lights, fluorescent lights, or LED lights (display may flicker).

    • Extremely small dark or white dots appear on the screen (dots may flicker).

    • An object is close to a camera.

  • Image display may be delayed if the temperature around the camera is low.
